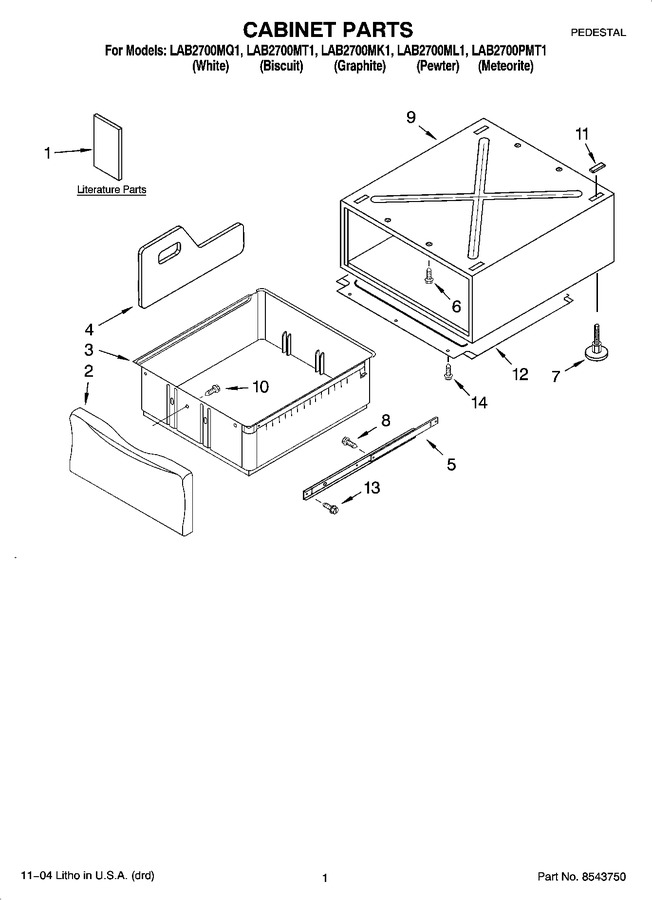

01 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8537141 | Installation Instructions |
|
- | |||||
| 1 | 8543750 | Parts List |
|
- | |||||
| 2 | 8537870 | Drawer Front Assembly (white) |
|
- | |||||
| 2 | 8537931 | Drawer Front Assembly (meteorite) |
|
- | |||||
| 2 | 8537908 | Drawer Front Assembly (pewter) |
|
- | |||||
| 2 | 8537872 | Drawer Front Assembly (graphite) |
|
- | |||||
| 2 | 8537871 | Drawer Front Assembly (biscuit) |
|
- | |||||
| 3 | 8537934 | Drawer Bin (for Lab2700pmt) |
|
- | |||||
| 3 | 8537883 | Drawer Bin (for Model Numbers Lab2700mq, Lab2700mt, Lab2700mk And Lab2700ml) |
|
$ 113.24 | |||||
| 4 | 8546245 | Divider, Drawer (set Of 2) (for Model Numbers Lab2700mq, Lab2700mt, Lab2700mk And Lab2700ml) |
|
- | |||||
| 4 | 8557848 | Divider, Drawer (set Of 2) (for Lab2700pmt) |
|
- | |||||
| 5 | WP8578394 | Slide Assembly (Replaces: 8537850) |
|
$ 98.16 | |||||
| 6 | WPW10346892 | Screw (Replaces: 3400111) |
|
Immediately | $ 7.19 | ||||
| 7 | WP8563585 | Foot Assembly (Replaces: 8563585) |
|
Immediately | $ 14.76 | ||||
| 8 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 3400639) |
|
$ 6.95 | |||||
| 9 | N/A | Cabinet (not Serviced) |
|
- | |||||
| 10 | WP1163283 | Screw, 8-18 X 1/2 (Replaces: 3400842) |
|
$ 7.19 | |||||
| 11 | 8537863 | Pad (4) |
|
$ 34.34 | |||||
| 12 | 8537853 | Pan, Bottom |
|
- | |||||
| 13 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 14 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | |||||
| 14 | 80051 | Paint, Touch-up (1/2oz.) (graphite) |
|
$ 7.64 | |||||
| 14 | WP4396174 | Paint, Touch-up (1/2oz.) (pewter) (Replaces: 4396174) |
|
$ 28.20 | |||||
| 14 | W10202939 | Paint, Touch-up 1/2 Oz. (meteorite) (Replaces: 4396603) |
|
$ 24.98 | |||||
| 14 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 14 | 8171357 | Paint, Pressurized Spray (12 Oz.) (graphite) |
|
$ 82.31 | |||||
| 14 | 4396175 | Paint, Pressurized Spray (12 Oz.) (pewter) |
|
- | |||||
| 14 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 14 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 14 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 14 | 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 26.45 |
