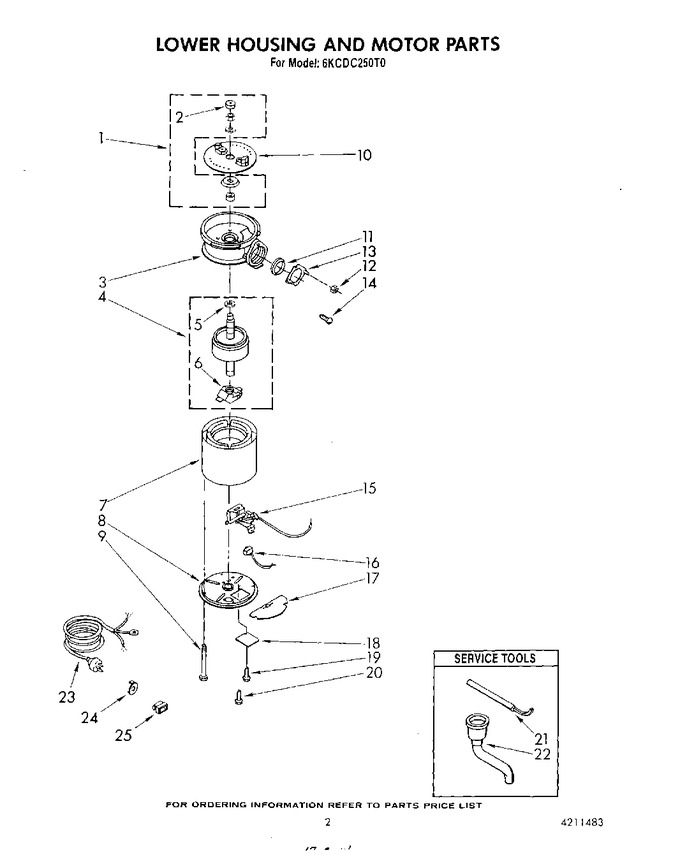

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211578		Kit, Sleeve And Seal (includes Plug, Nut, Washer, Slinger And Sleeve)   (Replaces: 4211311)				$ 124.78
2	4211578		Plug   (Replaces: 4211341)				$ 124.78
3	4211404		End Bell Assembly (upper)		Appelez-nous	-
4	4211447		Rotor And Shaft Assembly		Appelez-nous	-
5	4211321		Washer		Appelez-nous	-
6	4211446		Actuator Assembly, Centrifugal		Appelez-nous	-
7	4211448		Stator Assembly		Appelez-nous	-
8	4211327		End Frame Assembly, Lower		Appelez-nous	-
9	4211348		Bolt, Thru (4)		Appelez-nous	-
10	4211342		Shredder		Appelez-nous	-
11	4211453		Gasket, Tailpipe		Appelez-nous	-
12	4211454		Nut (2)		Appelez-nous	-
13	4211455		Flange, Tailpipe		Appelez-nous	-
14	WP8204624		Screw, Tailpipe   (Replaces: 4211346)				$ 17.48
15	4211449		Switch Assembly, Start		Appelez-nous	-
16	4211450		Protector, Overload		Appelez-nous	-
17	4211326		Shield, Wire		Appelez-nous	-
18	4211328		Cover, Terminal		Appelez-nous	-
19	4211458		Screw		Appelez-nous	-
20	4211330		Screw, Tailpipe		Appelez-nous	-
21	WP8174310		Emergency, Wrench Assembly   (Replaces: 4211435)				$ 22.35
22	4211396		Adapter, Sink Assembly		Appelez-nous	-
23	4211459		Plug And Cord Assembly		Appelez-nous	-
24	4211460		Clip, Retainer		Appelez-nous	-
25	4211461		Cord, Adapter		Appelez-nous	-
	LIT4211432		Guide, Use And Care		Appelez-nous	-
	LIT4211483		Repair Parts List		Appelez-nous	-
	LIT4211434		Instructions, Installation		Appelez-nous	-
