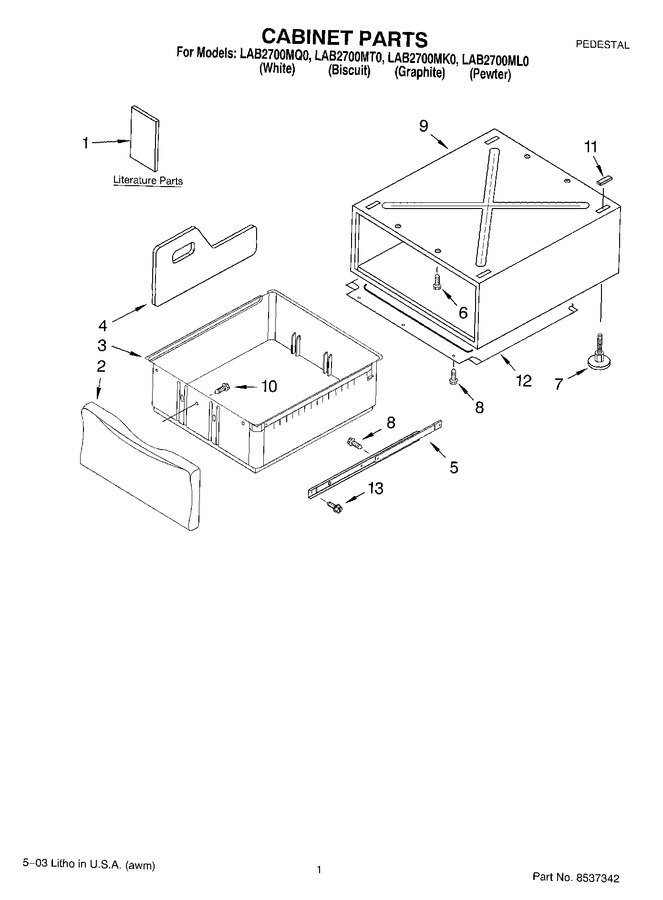

01 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8537342		Literature Parts (parts List)		Appelez-nous	-
1	LIT8537141		Literature Parts (installation Instructions)		Appelez-nous	-
2	8537931		Drawer Front Assembly (meteorite)		Appelez-nous	-
2	8537870		Drawer Front Assembly (white)		Appelez-nous	-
2	8537871		Drawer Front Assembly (biscuit)		Appelez-nous	-
2	8537872		Drawer Front Assembly (graphite)		Appelez-nous	-
2	8537908		Drawer Front Assembly (pewter)		Appelez-nous	-
3	8537883		Drawer Bin				$ 113.24
3	8537934		For Lab2700pmt		Appelez-nous	-
4	8537935		For Lab2700pmt		Appelez-nous	-
4	8537875		Divider, Drawer (set Of 2)		Appelez-nous	-
5	WP8578394		Slide Assembly   (Replaces: 8537850)				$ 103.07
6	WPW10346892		Screw   (Replaces: 3400111)			Immediately	$ 7.55
7	WP8563585		Foot Assembly   (Replaces: 8537852)			Immediately	$ 14.76
8	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3400639)				$ 7.30
9	N/A		Cabinet (not Serviced)		Appelez-nous	-
10	WP1163283		Screw, 8-18 X 1/2   (Replaces: 3400842)				$ 7.55
11	8537863		Pad (4)				$ 34.34
12	8537853		Pan, Bottom		Appelez-nous	-
13	3400618		Screw				$ 67.94
14	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	80051		Paint, Touch-up (1/2oz.) (graphite)				$ 7.64
	WP4396174		Paint, Touch-up (1/2oz.) (pewter)   (Replaces: 4396174)				$ 29.61
	W10202939		Paint, Touch-up 1/2 Oz. (meteorite)   (Replaces: 4396603)				$ 26.23
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	8171357		Paint, Pressurized Spray (12 Oz.) (graphite)				$ 86.43
	4396175		Paint, Pressurized Spray (12 Oz.) (pewter)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
