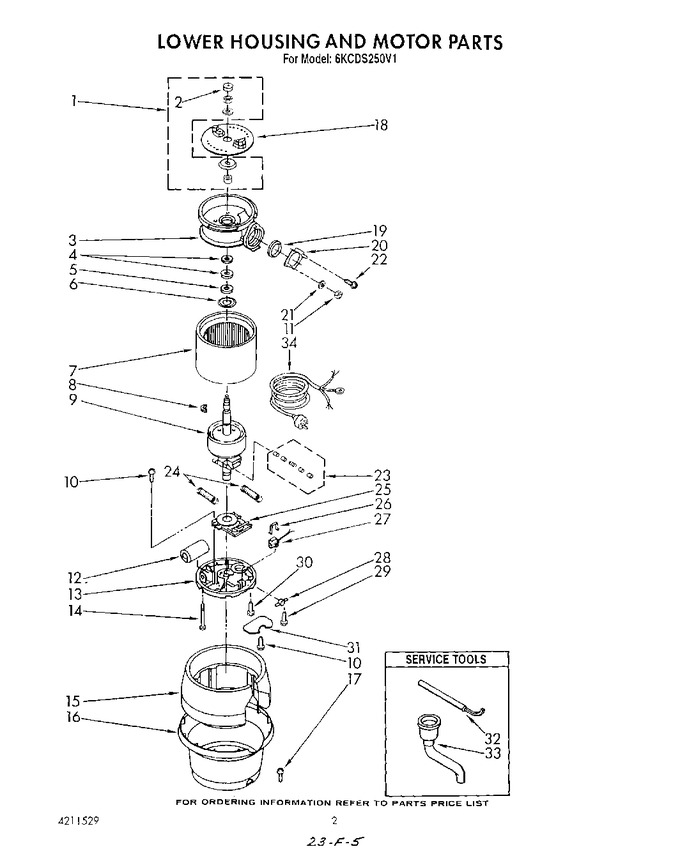

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211578		Kit, Sleeve And Seal (includes Plug, Nut, Washer, Slinger And Sleeve)   (Replaces: 4211311)				$ 124.78
2	4211578		Plug   (Replaces: 4211341)				$ 124.78
3	4211492		End Bell Assembly, Upper				$ 164.46
4	4211405		Washer, Phenolic (2)		Appelez-nous	-
5	4211406		Washer, Rubber		Appelez-nous	-
6	4211493		Washer, Thrust		Appelez-nous	-
7	4211533		Stator Assembly		Appelez-nous	-
8	4211376		Ring, C		Appelez-nous	-
9	4211534		Rotor & Shaft Assembly (includes Illus. No. 24)		Appelez-nous	-
10	4211380		Screw (5)		Appelez-nous	-
11	4211454		Nut (2)		Appelez-nous	-
12	4211385		Capacitor		Appelez-nous	-
13	4211470		End Frame Assembly (lower)		Appelez-nous	-
14	4211389		Bolt, Thru (4)		Appelez-nous	-
15	4211393		Insulation, Bottom		Appelez-nous	-
16	4211536		Trim, Shell Assembly		Appelez-nous	-
17	4211395		Screw, Tapping (3)		Appelez-nous	-
18	4211368		Shredder Assembly, Rotating		Appelez-nous	-
19	4211453		Gasket, Tailpipe		Appelez-nous	-
20	4211455		Adapter		Appelez-nous	-
21	4211519		Washer (2)		Appelez-nous	-
22	WP8204624		Screw, Tailpipe   (Replaces: 4211346)				$ 17.48
23	4211468		Transfer Assembly		Appelez-nous	-
24	4211477		Spring (2)		Appelez-nous	-
25	4211469		Switch Assembly, Start		Appelez-nous	-
26	4211383		Clip, Overload		Appelez-nous	-
27	4211478		Overload, Protector		Appelez-nous	-
28	4211387		Clamp, Bx		Appelez-nous	-
29	4211388		Screw, Clamp Bx (2)		Appelez-nous	-
30	4211390		Screw, Ground		Appelez-nous	-
31	4211391		Cover, Terminal		Appelez-nous	-
32	WP8174310		Emergency, Wrench Assembly   (Replaces: 4211435)				$ 22.35
33	4211396		Adapter, Sink Assembly		Appelez-nous	-
34	4211459		Plug & Cord		Appelez-nous	-
