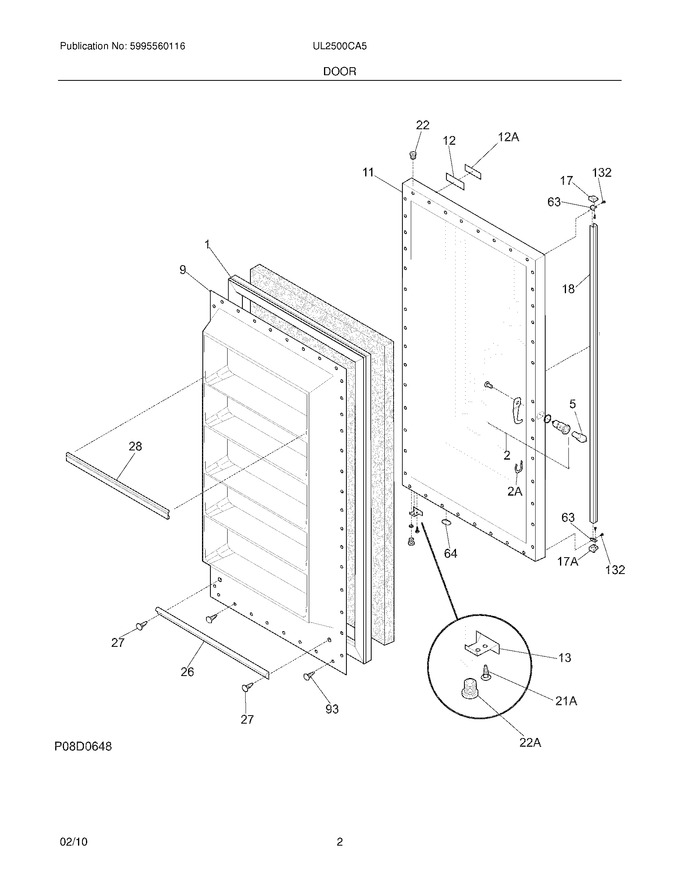

03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507199 | Gasket-door,white (Replaces: 216522362) |
|
Immediately | $ 177.33 | ||||
| 5 | 297147700 | Key,lock |
|
Immediately | $ 8.41 | ||||
| 9 | 216528113 | Panel-inner Door,frzr |
|
$ 257.51 | |||||
| 11 | 297316709 | Panel-outer Door,white |
|
- | |||||
| 12 | 297013400 | Bezel,nameplate ,white |
|
- | |||||
| 13 | 297257000 | Door Stop,chrome ,rh |
|
$ 18.48 | |||||
| 17 | 3206043 | End Cap,white ,upper |
|
- | |||||
| 18 | 216923102 | Handle |
|
- | |||||
| 22 | 216970802 | Bearing,hinge W/o`ring ,top (Replaces: 216970800) |
|
Immediately | $ 12.05 | ||||
| 26 | 216524201 | Gasket,secondary |
|
$ 55.13 | |||||
| 27 | 5304472186 | Clip,panel Mtg |
|
$ 12.85 | |||||
| 28 | 216951600 | Rack-door,(6) |
|
$ 77.11 | |||||
| 63 | F5304477321 | Retainer-handle |
|
- | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 64.58 | |||||
| 93 | 216858001 | Screw,8-18x.50 Ab ,no.10 |
|
Immediately | $ 12.05 | ||||
| 132 | 5304460601 | Screw,6-20ab X 3/8 |
|
- | |||||
| 12A | 5303297032 | Insert-bezel |
|
- | |||||
| 17A | 3206044 | End Cap,white ,bottom |
|
- | |||||
| 21A | 297197500 | Screw,door Stop Mtg ,fh38-16x.750 ,p Twin |
|
$ 16.07 | |||||
| 22A | 297006800 | Bearing-hinge,btm, W/o`ring |
|
$ 13.66 | |||||
| 2A | 297213300 | Clip,spring |
|
$ 10.17 | |||||
| F2 | 297318600 | Lock Assy (Replaces: 297213400) |
|
$ 40.97 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 139.81 |
