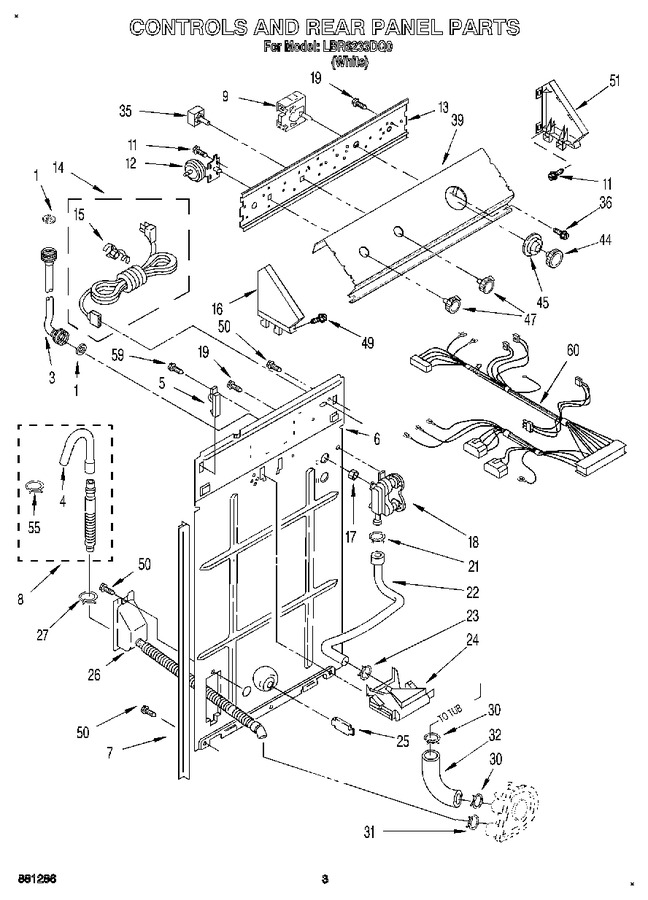

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 8.16 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) (Replaces: 3354858) |
|
Immediately | $ 24.09 | ||||
| 4 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 97.86 | |||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3357976 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | 285664 | Hose, Drain (4`- 8``) (Replaces: 661575) |
|
Immediately | $ 36.89 | ||||
| 8 | 285666 | Hose, Drain (9`- 9``) (not Included) (Replaces: 661577) |
|
Immediately | $ 62.34 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 63.94 | ||||
| 9 | WP3948357 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 3948357) |
|
Immediately | $ 317.15 | ||||
| 11 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 12 | WP3356467 | Switch, Water Level (Replaces: 3356467) |
|
$ 178.70 | |||||
| 13 | 3358897 | Bracket, Control |
|
- | |||||
| 14 | W10820044 | Cord, Power (Replaces: 3948063) |
|
$ 149.87 | |||||
| 15 | W11733005 | Strain Relief, Power Cord (Replaces: 63848) |
|
$ 13.58 | |||||
| 16 | 3358528 | Cap, End (l.h.) (white/chrome) |
|
- | |||||
| 17 | WP96160 | Screen, Filter (2) (Replaces: 96160) |
|
$ 12.30 | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3360392) |
|
Immediately | $ 55.08 | ||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 7.30 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 8.82 | ||||
| 21 | WP596669 | (alt.) (Replaces: 272846) |
|
Immediately | $ 8.82 | ||||
| 21 | WP596669 | (alt.) (Replaces: 353367) |
|
Immediately | $ 8.82 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 62662) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 75.28 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 19.85 | ||||
| 26 | WPW10358149 | Hose-corrugated Assy. (Replaces: 3361805) |
|
Immediately | $ 48.16 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 30 | WP371502 | Clamp, Hose (Replaces: 371502) |
|
$ 12.31 | |||||
| 31 | WP285655 | (alt.) (Replaces: 272858) |
|
Immediately | $ 8.81 | ||||
| 31 | WP285655 | (alt.) (Replaces: 353097) |
|
Immediately | $ 8.81 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 8.81 | ||||
| 31 | WP285655 | (alt.) (Replaces: 370447) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 62731) |
|
Immediately | $ 28.99 | ||||
| 35 | WPW10168256 | Switch, Water Temperature (Replaces: 3363323) |
|
Immediately | $ 135.25 | ||||
| 35 | 3347117 | (alt.) |
|
- | |||||
| 35 | 3348352 | (alt.) |
|
- | |||||
| 36 | WP356418 | Screw, Timer Mounting (10-32 X 1) (2) (Replaces: 96435) |
|
$ 9.26 | |||||
| 39 | 3947795 | Panel, Console |
|
- | |||||
| 44 | WP3364293 | Knob, Timer (Replaces: 3364291) |
|
Immediately | $ 62.42 | ||||
| 45 | 3946261 | Dial, Timer |
|
- | |||||
| 47 | WP3957796 | Knob, Control (Replaces: 3358435) |
|
Immediately | $ 57.57 | ||||
| 49 | WP388326 | Screw, 8-18 (panel To Top) (Replaces: 388326) |
|
$ 9.29 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 51 | 3358513 | Cap , End (r.h.) (white/chrome) |
|
- | |||||
| 55 | WP3357331 | Clamp, Drain Hose (Replaces: 3357331) |
|
$ 8.19 | |||||
| 59 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 60 | 3948411 | Harness, Wiring (for Detail See Wiring Harness Parts Page.) Also See Clips. |
|
- |
