Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 285050 Hose Kit, Permanent Installation Appelez-nous -
1 285052 Feet Kit (kit Contains 4 Feet & 4 Locknuts) Appelez-nous -
2 96745 Hose, Drain Appelez-nous -
2 359304 Locknut (4) Appelez-nous -
3 WPW10001130 Foot, Leveling (4)   (Replaces: 775526) In-Stock Immediately $ 7.80

3 WP16272 Connector, Hose   (Replaces: 16272) Special Order $ 8.21

4 96746 Hose, Outlet Section Drain Special Order $ 83.09

5 WP16123 Washer, Rubber (4)   (Replaces: 16123) Special Order $ 8.16

6 285452A Screen, Filter (2)   (Replaces: 355521) In-Stock Immediately $ 9.69

7 WP76314 Hose, Inlet (2)   (Replaces: 76314) Special Order $ 45.26


    View Diagram in Separate Window     Print Icon   Print Part List

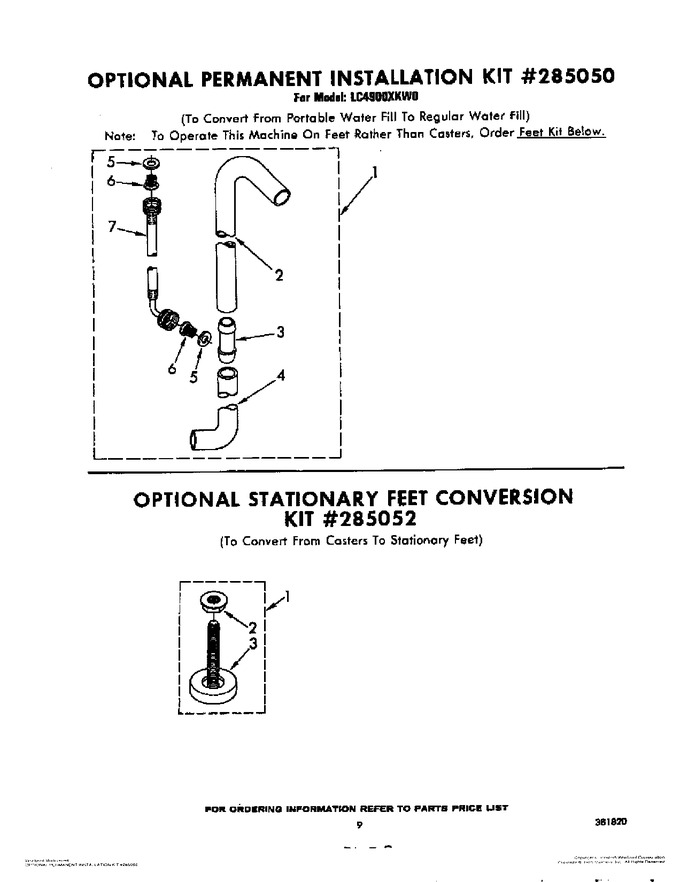

Diagram for LC4900XKW0
