View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel Parts

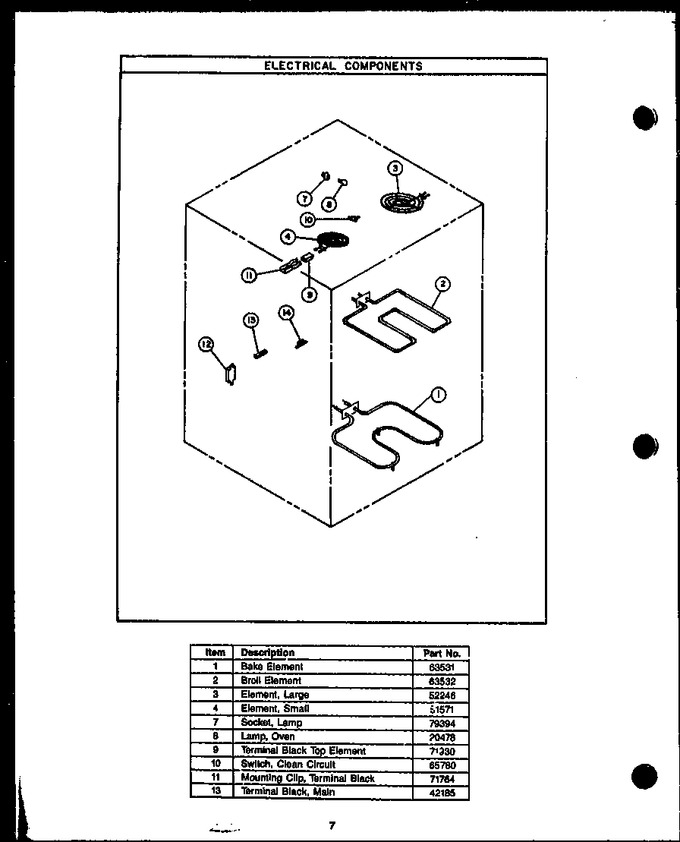

02 - Electrical Components
03 - Lower Oven Cabinet Assy
04 - Lower Storage Drawer
05 - Oven Door Parts
06 - Page 1
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY0063531 | Bake Element (Replaces: Y63531) |
|
$ 130.77 | |||||
| 2 | Y63532 | Broil Element |
|
- | |||||
| 3 | WPW10259868 | Surface Element 1500w (Replaces: Y0052246) |
|
Immediately | $ 124.76 | ||||
| 4 | WP3191454 | Element, 5 Turn (2100w) 8`` (Replaces: Y0051571) |
|
$ 190.90 | |||||
| 7 | 79394 | Socket, Lamp |
|
- | |||||
| 8 | 8009 | Bulb - Light (Replaces: 20478) |
|
Immediately | $ 18.67 | ||||
| 9 | 330031 | Terminal Block Top Element (Replaces: 71930) |
|
Immediately | $ 16.09 | ||||
| 10 | 65780 | Switch, Oven Door Latch |
|
- | |||||
| 11 | Y71764 | Mounting Clip, Terminal Block |
|
- | |||||
| 13 | 0042185 | Term Blk 1m-min |
|
- |
