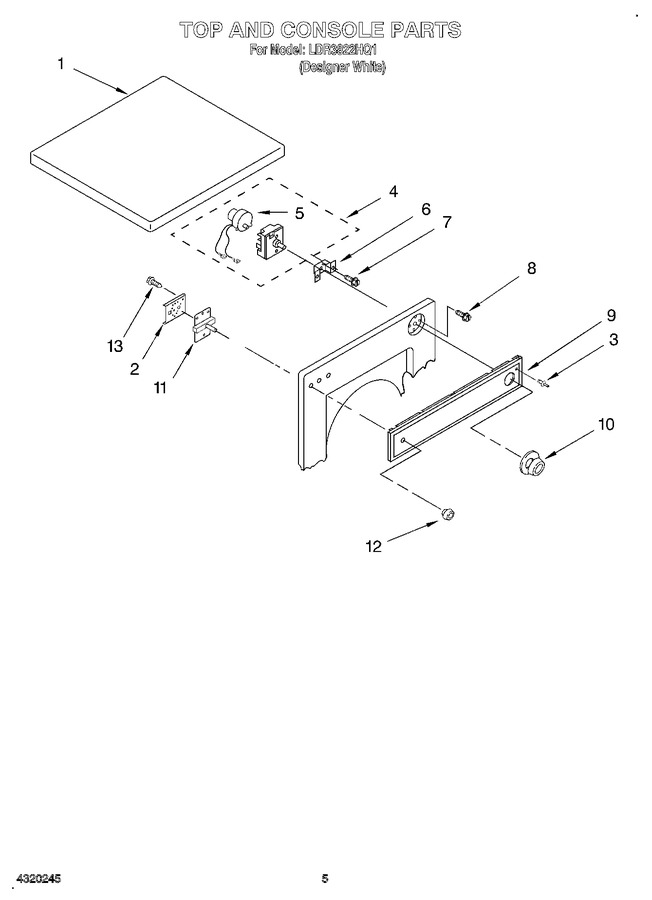

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	345703		Top				$ 261.58
2	3406860		Bracket, Front Panel		Appelez-nous	-
3	307563		Rivet, Pop (2)		Appelez-nous	-
4	WP8563881		Timer, 60 Hz.   (Replaces: 9830837)				$ 367.99
6	348171		Bracket, Timer		Appelez-nous	-
7	WP486579		Screw, 8-32 X 7/32   (Replaces: 311865)				$ 7.89
8	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
9	3978887		Panel, Control		Appelez-nous	-
10	9831679		Timer Knob & Dial		Appelez-nous	-
11	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
12	WP3957800		Knob, Push-to-start   (Replaces: 3406133)				$ 52.92
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
