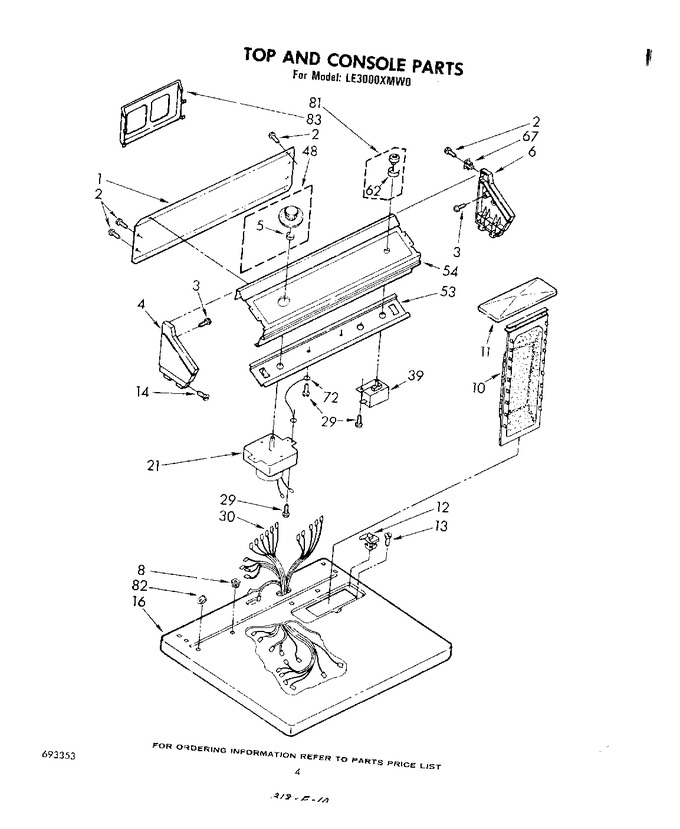

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358470		Panel, Rear Console		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	377314		Cap, End (l.h.) (white)		Appelez-nous	-
5	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
6	377315		Cap , End (r.h.) (white)		Appelez-nous	-
8	358472		Stop, Push-in (2)		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	358225		Screw, 8-18 X 1		Appelez-nous	-
16	688479		Top (white)		Appelez-nous	-
21	687952		Timer Assembly, 60 Hz.		Appelez-nous	-
29	WP3390631		Screw   (Replaces: 339554)				$ 7.82
30	693293		Harness		Appelez-nous	-
39	346364		Switch, Push-to-start (alt.)		Appelez-nous	-
39	660936		Switch, Push-to-start		Appelez-nous	-
39	692021		Switch, Push-to-start (alt.)		Appelez-nous	-
48	691760		Timer Knob Assembly		Appelez-nous	-
53	359708		Bracket, Control		Appelez-nous	-
54	688346		Panel, Control		Appelez-nous	-
62	599530307		Clip   (Replaces: 90015)		Appelez-nous	-
67	689559		Nut, Push-in (4)		Appelez-nous	-
72	690853		Wire, Console Ground		Appelez-nous	-
81	346218		Pushbutton Assembly		Appelez-nous	-
82	358473		Nut, Push-in (2)				$ 5.84
83	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
83	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
83	350941		Leveler (thinner)		Appelez-nous	-
83	799351		Thinner (1 Gal.)		Appelez-nous	-
83	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
83	357645		Rack, Literature		Appelez-nous	-
83	688643		Instructions, Installation		Appelez-nous	-
83	691273		Guide, Use & Care		Appelez-nous	-
83	693849		Guide, Dryer		Appelez-nous	-
83	693353		List, Parts		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
