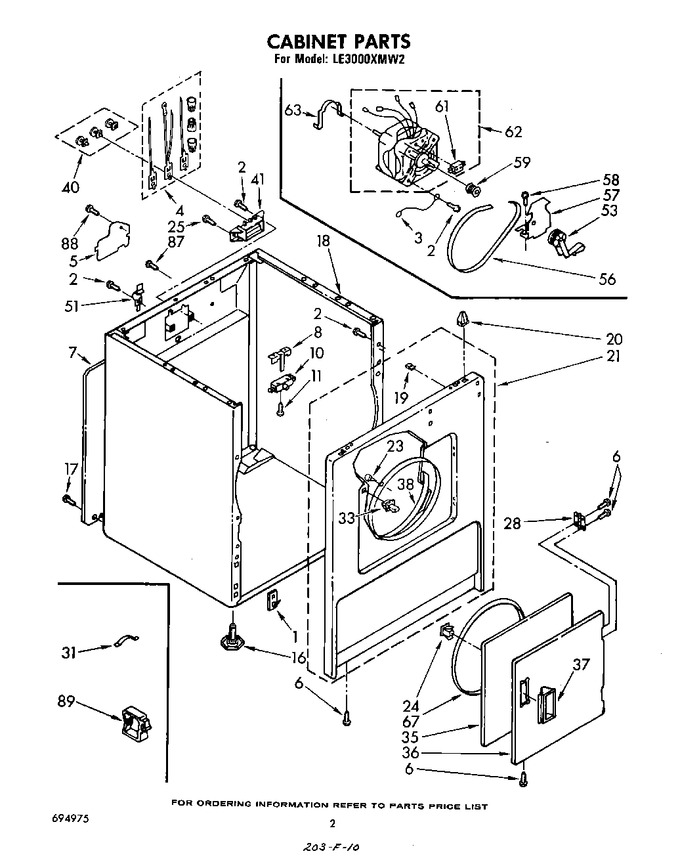

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10854425 | Clip (2) (Replaces: 237823) |
|
Immediately | $ 15.56 | ||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 4 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 40) |
|
Immediately | $ 100.99 | ||||
| 5 | W11736322 | Cover, Terminal Block (Replaces: 690893) |
|
- | |||||
| 6 | WP694091 | Screw (Replaces: 694091) |
|
$ 7.19 | |||||
| 7 | 346368 | Panel, Rear |
|
- | |||||
| 8 | WP691581 | Lever, Door Switch (Replaces: 295998) |
|
Immediately | $ 8.09 | ||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 11 | WP98129 | Screw, 6-20 X 7/8 (Replaces: 98129) |
|
$ 7.56 | |||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 688222) |
|
Immediately | $ 8.55 | ||||
| 17 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 18 | 690847 | Cabinet (white) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 12.68 | ||||
| 21 | 693197 | Front Panel (white) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 20.65 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 25 | WP308685 | Screw, Terminal Block To Cabinet (Replaces: 9416643) |
|
Immediately | $ 7.87 | ||||
| 28 | WP348023 | Hinge & Pin Assembly (Replaces: 348023) |
|
$ 8.42 | |||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.09 | |||||
| 33 | 279570 | Strike, Door (Replaces: 693717) |
|
Immediately | $ 8.89 | ||||
| 35 | 280077 | Door, Rear (white) (Replaces: 348201) |
|
$ 197.58 | |||||
| 36 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 147.39 | ||||
| 37 | WP686711 | Handle, Door (Replaces: 686711) |
|
Immediately | $ 7.95 | ||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 74.52 | ||||
| 40 | 279393 | Terminal Screw Kit For Terminal Block |
|
Immediately | $ 47.37 | ||||
| 41 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 68.25 | ||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.82 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 121.57 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 13.37 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 694871) |
|
Immediately | $ 51.02 | ||||
| 61 | 279827 | Switch (use W/695075 Motor) (Replaces: 337351) |
|
Immediately | $ 191.95 | ||||
| 62 | 279827 | Motor Assembly 60 Hz. (Replaces: 695075) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | Clip, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 63 | WP660658 | Clip, Motor (2) (alt.) (Replaces: 343481) |
|
$ 7.83 | |||||
| 63 | WP660658 | Clip, Motor (2) (alt.) (Replaces: 685441) |
|
$ 7.83 | |||||
| 67 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 53.63 | |||||
| 87 | WP681414 | Screw, 10-32 X 1/2 (grounding) (Replaces: 690989) |
|
Immediately | $ 7.85 | ||||
| 88 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.85 | ||||
| 89 | 688412 | Clip, Harness Retainer |
|
- |
