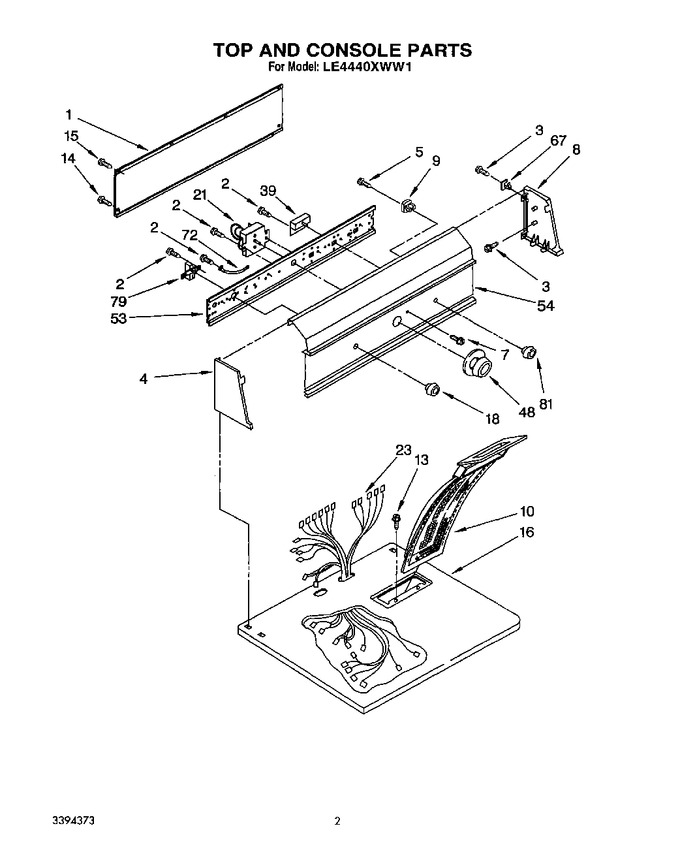

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 356713 | Panel, Rear Console |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 4 | 3393198 | Cap, End (l.h.) |
|
- | |||||
| 5 | WP355515 | Screw, 8 X 7/8 (Replaces: 355515) |
|
$ 8.48 | |||||
| 7 | WP694091 | Screw, 8-18 X 5/16 (Replaces: 694091) |
|
$ 7.55 | |||||
| 8 | 3393197 | Cap, End (r.h.) |
|
- | |||||
| 9 | 98460 | Nut, Push-in |
|
$ 12.07 | |||||
| 10 | W10874409 | Screen, Lint (Replaces: 348855) |
|
Immediately | $ 67.01 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP489069 | Screw, Hex (4) (Replaces: 693994) |
|
Immediately | $ 8.40 | ||||
| 15 | WP693995 | Screw, Hex (2) (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | 685958 | Top (white) |
|
- | |||||
| 18 | 3393200 | Control Knob, Temperature |
|
- | |||||
| 21 | 3393916 | Timer, 60 Hz. |
|
- | |||||
| 31 | 3393989 | Harness, Wiring |
|
- | |||||
| 39 | 660936 | Switch, Push-to-start |
|
- | |||||
| 48 | 3392732 | Timer Knob Assembly |
|
- | |||||
| 53 | 690864 | Bracket, Control |
|
- | |||||
| 54 | 3393196 | Panel, Control |
|
- | |||||
| 67 | 689559 | Clip, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 79 | 694720 | Switch, Temperature |
|
- | |||||
| 81 | 3393199 | Knob, Push-to-start |
|
- | |||||
| LIT3389444 | Instructions, Installation |
|
- | ||||||
| LIT677818 | Dryer |
|
- | ||||||
| LIT677971 | Ice Maker (in Refrigerator) |
|
- | ||||||
| LIT677967 | Dishwasher |
|
- | ||||||
| 677821 | Compactor (Replaces: LIT677821) |
|
$ 35.01 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| LIT3394373 | List, Service Parts |
|
- | ||||||
| LIT3391427 | Guide, Dryer |
|
- | ||||||
| LIT3395427 | Use & Care Guide |
|
- | ||||||
| LIT677813 | Automatic Washer (belt Drive) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 |
