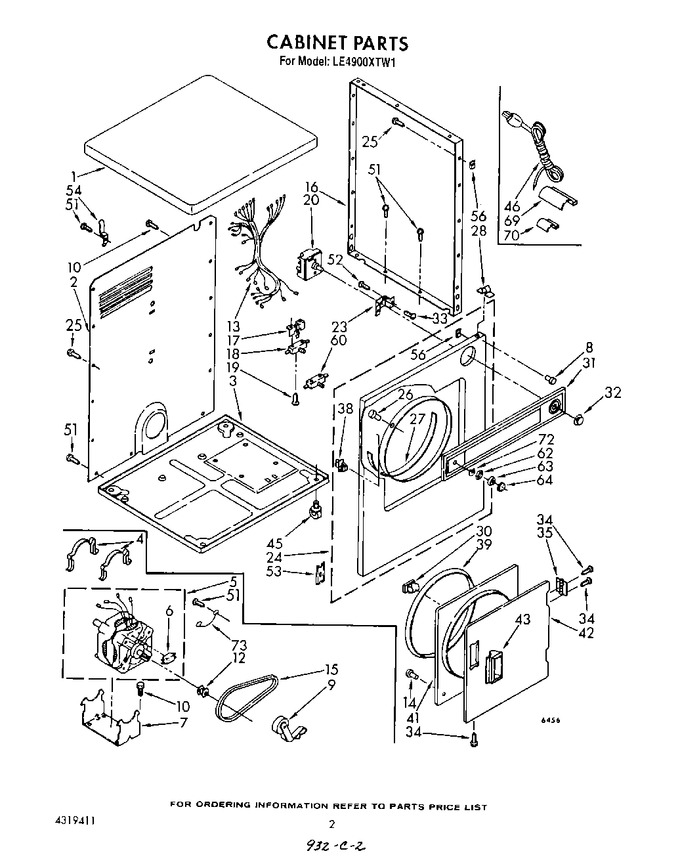

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4319426		Top (gold)		Appelez-nous	-
1	4319405		Top (almond)		Appelez-nous	-
1	345703		Top (white)   (Replaces: 4319377)				$ 261.58
2	280048		Panel, Rear (white)   (Replaces: 4319383)				$ 299.42
2	4319425		Panel, Rear (gold)		Appelez-nous	-
2	4319407		Panel, Rear (almond)		Appelez-nous	-
3	WP348726		Base Assembly   (Replaces: 4319400)				$ 292.16
4	WP660658		Clip, Motor   (Replaces: 4319313)				$ 8.22
5	279827		Motor, 60 Hz.   (Replaces: 3391887)			Immediately	$ 217.20
6	279827		Switch (use W/3391887 Motor)   (Replaces: 3388235)			Immediately	$ 217.20
7	696541		Base, Motor				$ 97.86
8	307563		Rivet		Appelez-nous	-
9	WP691366		Idler & Pulley Assembly   (Replaces: 4319391)			Immediately	$ 22.47
10	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
12	W10837625		Pulley, 60 Hz.   (Replaces: 694872)			Immediately	$ 12.77
13	4319414		Harness, Wiring		Appelez-nous	-
14	238614		Bumper				$ 84.79
15	3394652		Belt, Drive   (Replaces: 4319392)			Immediately	$ 52.32
16	4319427		Panel, Side (gold)		Appelez-nous	-
16	4319406		Panel, Side (almond)		Appelez-nous	-
16	4319382		Panel, Side (white)		Appelez-nous	-
17	WP691581		Lever, Door Switch   (Replaces: 295998)			Immediately	$ 8.49
18	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
19	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 8.18
20	690621		Timer, 60 Hz.		Appelez-nous	-
23	348171		Bracket, Timer   (Replaces: 4319376)		Appelez-nous	-
24	4319415		Xfront Panel Assembly (white)		Appelez-nous	-
24	4319416		Xfront Panel Assembly (almond)		Appelez-nous	-
24	4319428		Front Panel Assembly (gold)		Appelez-nous	-
25	WP489069		Screw, 10-16 X 1/2   (Replaces: 693994)			Immediately	$ 8.40
26	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 23.55
27	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 85.45
28	WP345670		Lock, Top (2)   (Replaces: 345670)			Immediately	$ 8.09
30	WP3389441		Catch, Door Assembly   (Replaces: 3389441)			Immediately	$ 7.29
31	696452		Panel, Control		Appelez-nous	-
32	696350		Knob & Skirt Assembly		Appelez-nous	-
33	W11808444		Screw, 8-32 X 5/16 (2)   (Replaces: 98139)		Appelez-nous	-
34	WP694091		Screw (4)   (Replaces: 694091)				$ 7.55
35	WP348023		Hinge & Pin Assembly (2)   (Replaces: 4319328)				$ 9.32
38	279570		Strike, Panel   (Replaces: 696144)			Immediately	$ 8.89
39	W11613302		Seal, Door   (Replaces: 685763)				$ 56.31
41	4319386		Door, Rear		Appelez-nous	-
42	4319429		Door, Front (gold)		Appelez-nous	-
42	4319333		Door, Front (almond)		Appelez-nous	-
42	4319327		Door, Front (white)		Appelez-nous	-
43	4319430		Handle, Door (gold)		Appelez-nous	-
43	4319334		Handle, Door (almond)		Appelez-nous	-
43	WP3405184		Handle, Door (white)   (Replaces: 4319329)				$ 79.81
45	279127		Caster (4) (alt.)   (Replaces: 688055)				$ 77.47
45	279127		Caster (4)   (Replaces: 660719)				$ 77.47
45	279127		Caster (4) (alt.)   (Replaces: 349999)				$ 77.47
46	4319379		Cord, Power		Appelez-nous	-
51	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
52	WP90767		Screw   (Replaces: 339527)			Immediately	$ 8.25
53	W10854425		Clip (2)   (Replaces: 237823)			Immediately	$ 16.34
54	345790		Bracket, Power Cord (2)		Appelez-nous	-
56	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.96
60	689038		Switch, Push-to-start		Appelez-nous	-
62	90891		Nut, Hex		Appelez-nous	-
63	345530		Ring, Trim		Appelez-nous	-
64	688041		Nut, Knurled		Appelez-nous	-
69	686769		Protector, Support (16``)		Appelez-nous	-
70	686767		Protector, Support (7``)		Appelez-nous	-
72	688193		Lockwasher		Appelez-nous	-
73	4319390		Wire, Ground (motor)		Appelez-nous	-
