Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 345396 Clip Appelez-nous -
2 696538 Air Duct Assembly Appelez-nous -
3 WP90767 Screw, 8a X 3/8   (Replaces: 90767) In-Stock Immediately $ 8.25

4 AT022 Thermostat, 145~f (63~c)   (Replaces: 660074) In-Stock Immediately $ 35.17

5 345965 Guard, Exhaust Special Order $ 79.15

6 WP339956 Seal   (Replaces: 4319308) In-Stock Immediately $ 9.06

7 WP696426 Wheel, Blower   (Replaces: 696426) In-Stock Immediately $ 136.69

8 WP681414 Screw, 10-16 X 1/2   (Replaces: 687128) In-Stock Immediately $ 8.47

9 4319307 Washer, Support Appelez-nous -
10 696419 Scroll, Fan Special Order $ 143.66

11 279848 Bulkhead   (Replaces: 695930) Special Order $ 364.78

12 279771 Clip   (Replaces: 4319315) Special Order $ 15.05

13 685457 Box, Heater Appelez-nous -
15 W10491983 Cap, Screw   (Replaces: 359702) Appelez-nous -
16 W11233063 Shield, Exhaust   (Replaces: 696302) Special Order $ 23.40

17 LS2-175 Thermostat, 180~f (82~c) (alt.)   (Replaces: 341197) In-Stock Immediately $ 27.33

17 295432 Thermostat, 180~f (82~c) (alt.) Appelez-nous -
17 660368 Thermostat, 180~f (82~c) Appelez-nous -
18 339492 Washer, Support Appelez-nous -
19 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 8.47

20 WP681414 Screw, 10-32 X 1/2   (Replaces: 4319402) In-Stock Immediately $ 8.47

22 279506 Heater Element   (Replaces: 4319393) Special Order $ 280.27

23 279457 Terminal Wire Kit (for Heater Element Wiring Harness Repair) In-Stock Immediately $ 7.92

24 WP308685 Screw, 10-16 X 1/2   (Replaces: 9416643) In-Stock Immediately $ 7.87

26 345325 Gusset (2) Appelez-nous -
27 120377 Nut, 3/8-16 Appelez-nous -
28 3391834 Drum Assembly   (Replaces: 695943) Special Order $ 372.51

29 279735 Seal, Rear Drum   (Replaces: 345648) In-Stock Immediately $ 109.77

30 690372 Screw, 11-16 X 7/8 Appelez-nous -
32 WP3394508 Bearing, Ring   (Replaces: 297936) Special Order $ 131.86

33 W10491983 Cap, Screw   (Replaces: 359702) Appelez-nous -
34 WPW10512946 Ring, Tri   (Replaces: 4319305) In-Stock Immediately $ 9.68

35 349241T Roller, Support   (Replaces: 349241) In-Stock Immediately $ 29.53

36 WPW10359270 Shaft, L.h.   (Replaces: 4319306) In-Stock Immediately $ 72.71

37 WPW10359269 Shaft, R.h.   (Replaces: 4319304) In-Stock Immediately $ 56.77

38 W11778255 Baffle, Drum Short (3)   (Replaces: 4319389) In-Stock Immediately $ 41.37

39 WP3390631 Screw   (Replaces: 342202) Special Order $ 8.25

41 W10828351 Screen, Lint   (Replaces: 348399) In-Stock Immediately $ 69.60

43 W10828351 Cover, Lint Screen   (Replaces: 685273) In-Stock Immediately $ 69.60

44 WP3390631 Screw, Tapping   (Replaces: 342202) Special Order $ 8.25

46 345685 Seal Appelez-nous -
48 WP694419 Buzzer, Mini   (Replaces: 694419) Special Order $ 134.05

LIT3391427 Guide, Dryer Appelez-nous -
261891 Gold (uncut) Appelez-nous -
DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

LIT4319411 List, Service Parts Appelez-nous -
72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

LIT3391349 Use & Care Guide Appelez-nous -
LIT3387922 Label, Operating Instruction Appelez-nous -
978883 Almond (uncut) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

350941 Leveler (thinner) Appelez-nous -
350956 Paint, Spray 13 Oz. (almond) Special Order $ 54.01

LIT3390354 Instructions, Installation Appelez-nous -
350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
261890 Gold Appelez-nous -
350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12


    View Diagram in Separate Window     Print Icon   Print Part List

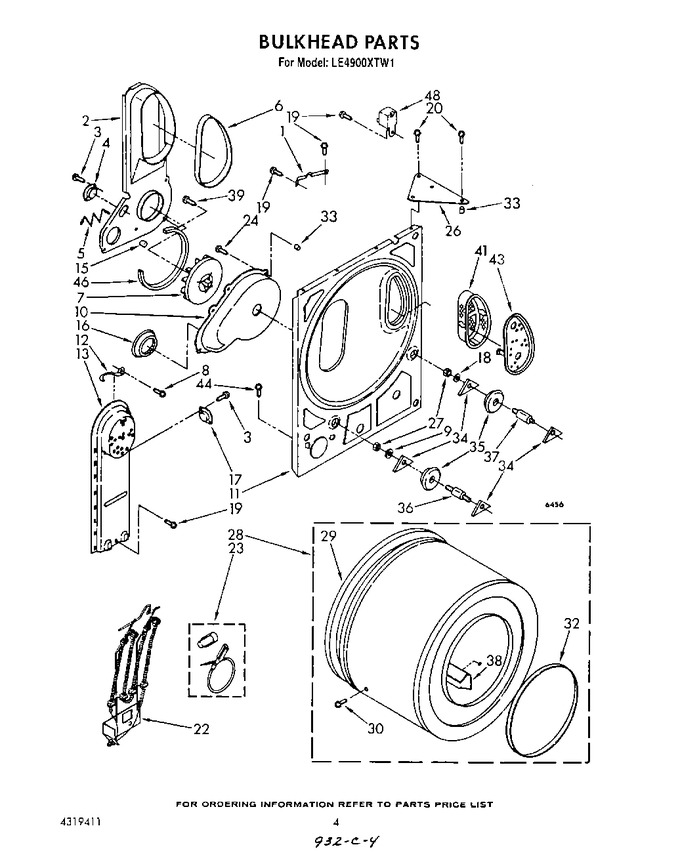

Diagram for LE4900XTW1
