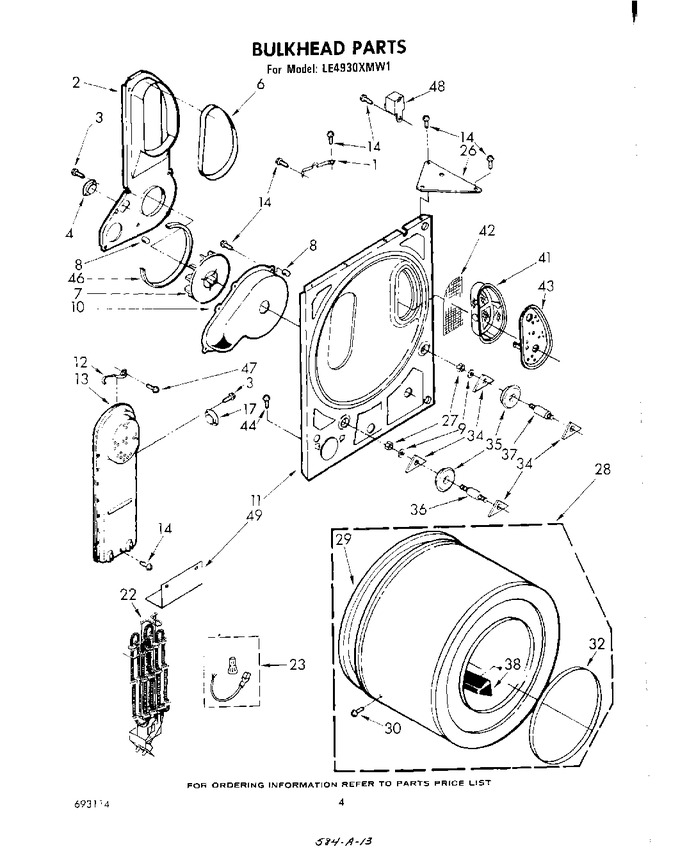

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	345396		Clip		Appelez-nous	-
2	349539		Air Duct Assembly		Appelez-nous	-
3	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.43
4	LS2-155		Thermostat, 155~f (68~c) (alt.)   (Replaces: 341199)			Immediately	$ 24.60
4	WP694674		Thermostat, 155~f (68~c) (alt.)   (Replaces: 299620)			Immediately	$ 75.63
4	AT022		Thermostat, 155~f (68~c)   (Replaces: 660073)			Immediately	$ 27.28
6	WP339956		Seal   (Replaces: 339956)			Immediately	$ 8.15
7	345317		Wheel, Blower		Appelez-nous	-
8	W10491983		Protector, Screw (2)   (Replaces: 359702)		Appelez-nous	-
9	WP348197		Washer, Support   (Replaces: 348197)				$ 6.80
10	347798		Scroll, Fan		Appelez-nous	-
11	279848		Bulkhead   (Replaces: 349725)				$ 328.30
12	279771		Clip   (Replaces: 337272)				$ 13.55
13	685457		Box, Heater		Appelez-nous	-
14	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
17	LS2-225		Thermostat, 225~f (107~c)   (Replaces: 347296)			Immediately	$ 10.49
22	694430		Element, Heater		Appelez-nous	-
23	279457		Terminal Wire Kit (for Heater Element Wiring Harness Repair)			Immediately	$ 7.13
26	345325		Gusset (2)		Appelez-nous	-
27	120377		Nut, 3/8-16		Appelez-nous	-
28	00685158		Drum Assembly   (Replaces: 685158)				$ 188.69
29	279735		Seal, Rear   (Replaces: 345648)			Immediately	$ 98.79
30	690372		Screw, 11-16 X 7/8		Appelez-nous	-
32	WP3394508		Bearing, Ring   (Replaces: 297936)				$ 118.67
34	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 9.14
35	349241T		Roller, Support   (Replaces: 349241)			Immediately	$ 26.70
36	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 68.72
37	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 53.65
38	00685207		Baffle, Drum Short (3)   (Replaces: 685207)				$ 293.40
41	W10828351		Screen, Lint   (Replaces: 348399)			Immediately	$ 62.64
42	348378		Screen, Back-up				$ 38.60
43	W10828351		Cover, Lint Screen   (Replaces: 685273)			Immediately	$ 62.64
44	WP3390631		Screw, Tapping   (Replaces: 342202)				$ 7.43
46	345685		Seal		Appelez-nous	-
47	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.62
48	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
49	690913		Reflector, Heat		Appelez-nous	-
	LIT690052		Instructions, Installation		Appelez-nous	-
	LIT677813		Automatic Washer (belt Drive)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
	350941		Leveler (thinner)		Appelez-nous	-
	LIT691370		Label, Operating Instruction		Appelez-nous	-
	LIT693675		Use & Care Guide		Appelez-nous	-
	LIT693849		Guide, Dryer		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	LIT677971		Ice Maker (in Refrigerator)		Appelez-nous	-
	285365		Toast		Appelez-nous	-
	261890		Golden Harvest		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	LIT693114		List, Service Parts		Appelez-nous	-
	LIT677967		Dishwasher		Appelez-nous	-
	677821		Compactor   (Replaces: LIT677821)				$ 31.51
	LIT677818		Dryer		Appelez-nous	-
	285368		Platinum (uncut)		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Golden Harvest		Appelez-nous	-
