Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 C8964402 Bushing, Top Appelez-nous -
2 C8972403 Stop, Door (blk) Appelez-nous -
3 R0181181 Kit,dr Closure   (Replaces: D7751403) In-Stock Immediately $ 6.80

4 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 7.43

5 10860201 Kit, Bot.hinge Shim Appelez-nous -
6 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 7.71

7 10495806 Hinge, Top L (e-ct) Appelez-nous -
8 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 9.52

9 10399501 Kit,btm Hinge Shim Appelez-nous -
9 10399502 Kit,btm Hinge Shim Appelez-nous -
10 R0181181 Kit,dr Closure   (Replaces: D7748302) In-Stock Immediately $ 6.80

11 10496104 Kit,hinge Lh Btm(b) Appelez-nous -
12 WP489128 Screw   (Replaces: M0220417) Special Order $ 10.26

13 WP67006715 Screw   (Replaces: M0233847) Special Order $ 6.80

14 B8387703 Shim, Door Closure Appelez-nous -
14 WP67005716 Shim, Dr Closure (blk)   (Replaces: B8387704) Special Order $ 7.05

15 10504204 Cover, Hinge(rh) Appelez-nous -
16 M0202325 Screw Appelez-nous -
17 10494508 Trim, Vertical (black) Appelez-nous -
18 10494203 Trim, Frz Dr Top Appelez-nous -
19 10494103 Trim, Frz Dr Bot Appelez-nous -
20 10361801 Shim, Dr Bushing Appelez-nous -
21 10331305 Handle, Door Appelez-nous -
22 D7826809 Gasket, Handle Appelez-nous -
23 10494805 Cap, Handle Top Appelez-nous -
24 D7828107 Cap, Handle Bottom Appelez-nous -
25 10494604 Support, Fz Trim Appelez-nous -
26 D7853504 End Cap, Nameplate Appelez-nous -
27 Y10494703 Trim Appelez-nous -
28 WPB5705307 Tubing Plastic   (Replaces: B5705308) Special Order $ 11.75

29 10281002 Grommet, Screw Appelez-nous -
30 R0195042 Double Backed Tape 6ft Roll Appelez-nous -
31 M0213815 Screw Appelez-nous -
32 M0213521 Screw Appelez-nous -
33 10164202 Harness Fz Door Appelez-nous -
34 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 13.25


    View Diagram in Separate Window     Print Icon   Print Part List

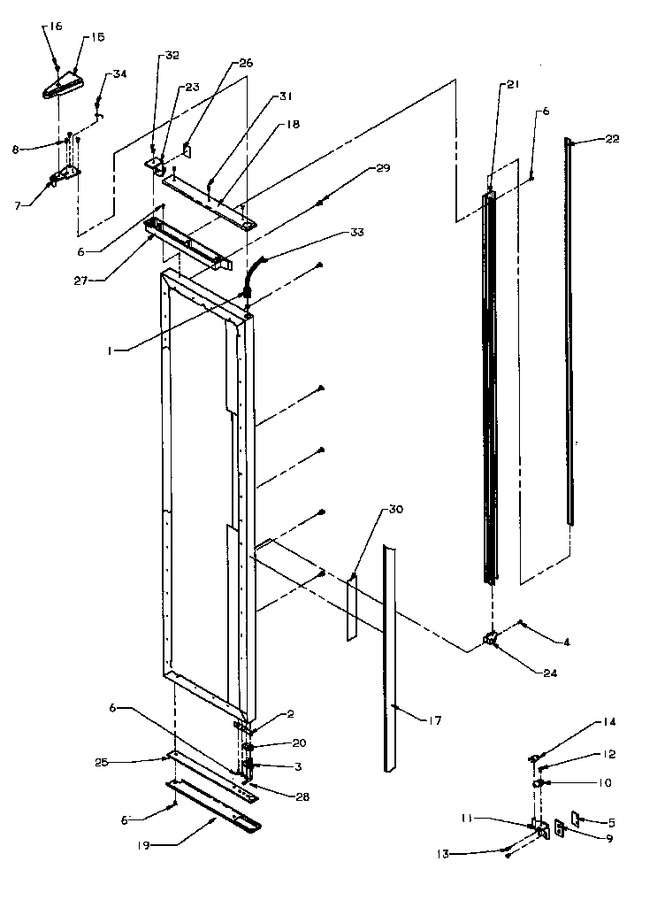

Diagram for SBD20Q2E (BOM: P1162512W E)
