Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10393802 Bushing, Door (wht) Appelez-nous -
2 C8972404 Stop, Satin Door Appelez-nous -
3 R0181181 Kit,dr Closure   (Replaces: D7751402) In-Stock Immediately $ 6.80

4 10494509 Trim, Vert Appelez-nous -
5 M0213815 Screw Appelez-nous -
6 M0213521 Screw Appelez-nous -
7 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 7.71

8 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 7.43

9 10495805 Hinge, Top R (e-ct) Appelez-nous -
10 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 9.52

11 WP489128 Screw   (Replaces: M0220417) Special Order $ 10.26

12 R0181181 Kit,dr Closure   (Replaces: D7748302) In-Stock Immediately $ 6.80

12 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 6.80

13 10496105 Kit,hinge Rh Btm(b) Appelez-nous -
14 10399501 Kit,btm Hinge Shim Appelez-nous -
14 10399502 Kit,btm Hinge Shim Appelez-nous -
16 10504205 Cover, Hinge Appelez-nous -
17 M0202325 Screw Appelez-nous -
18 10494402 Trim, Refr Dr Top Appelez-nous -
19 10494302 Trim, Refr Dr Bot Appelez-nous -
20 10331304 Handle, Door Appelez-nous -
21 D7826808 Insert, Handle Appelez-nous -
22 10361801 Shim, Dr Bushing Appelez-nous -
23 10494804 Cap, Handle Top Appelez-nous -
24 D7828106 Cap, Handle Bottom Appelez-nous -
25 10494603 Support Ref Trim (btm) Appelez-nous -
26 D7853503 Nameplate, End Cap Appelez-nous -
27 10496001 Extr, Refr Door Appelez-nous -
28 10860201 Kit, Bot.hinge Shim Appelez-nous -
29 10281002 Grommet, Screw Appelez-nous -
30 R0195042 Double Backed Tape 6ft Roll Appelez-nous -
31 B8387701 Shim, Door Closure Appelez-nous -
31 B8387702 Shim, Door Closure Appelez-nous -
31 B8387703 Shim, Door Closure Appelez-nous -
31 WP67005716 Shim, Dr Closure (blk)   (Replaces: B8387704) Special Order $ 7.05


    View Diagram in Separate Window     Print Icon   Print Part List

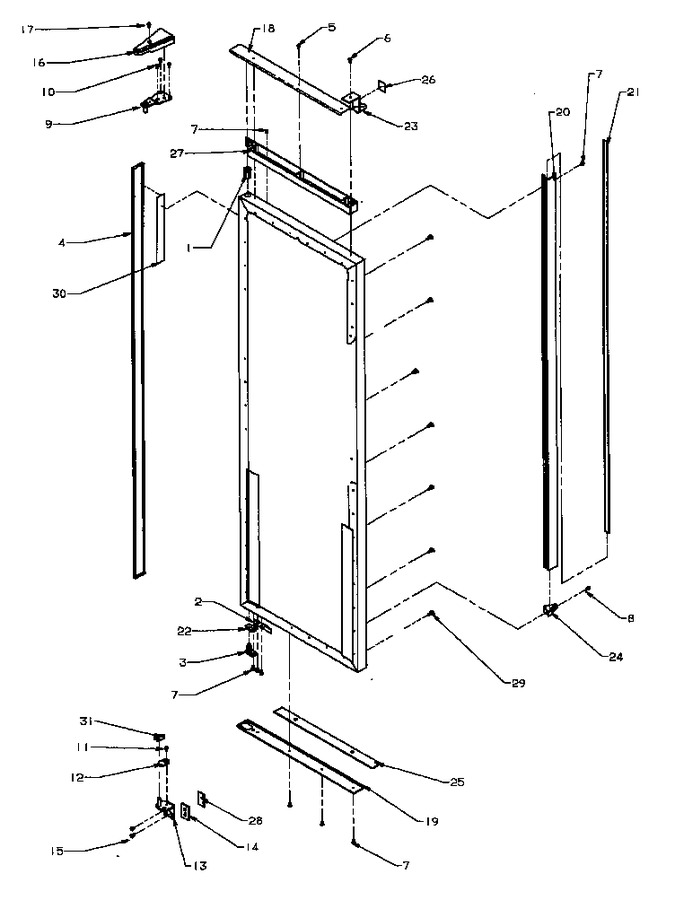

Diagram for SBD20Q2W (BOM: P1162512W W)
