Diagram # Part Number Description Series Availability Ships Price Add to Cart
10 10323305 Bracket, Elec Mtg Appelez-nous -
10 A1061501 Pin, Chute Door Appelez-nous -
20 10533002 Switch, Limit (water Disp) Appelez-nous -
20 A1061601 Retainer, Ice Arm Appelez-nous -
20 M0117301 Clip, Grille Appelez-nous -
30 WP10533003 Switch, Limit (ice Disp)   (Replaces: 10533003) Special Order $ 73.29

30 B8380701 Insulation, Chute Door Appelez-nous -
40 B8380801 Brkt-chute Door Appelez-nous -
40 M0237809 Screw, T.f. Appelez-nous -
50 B8380901 Spring,chute Door Special Order $ 7.18

60 B8385401 Spring, Return Appelez-nous -
70 10166101 Switch-light Cavity Special Order $ 6.49

80 W10819546 Clip, Facade   (Replaces: B8390302) Special Order $ 13.14

80 10131701 Socket, Light Appelez-nous -
90 D7726590 Wire-jumper Appelez-nous -
90 C8972501 Retainer Door Delay Appelez-nous -
100 D7726593 Wire Jumper Appelez-nous -
100 C8973602 Delay, Door Special Order $ 49.84

110 10533001 Switch, Limit Special Order $ 14.43

110 10876001 Cavity,dispenser(white) Appelez-nous -
120 D7726592 Wire-jumper Appelez-nous -
120 10246601 Kit,chute Dr No.3 Appelez-nous -
130 12102104 Arm, Ice Disp. Special Order $ 26.54

130 B5667304 Wire Clip Appelez-nous -
130 12102101 Ice Act. Arm Appelez-nous -
140 10131801 Cover-elect Brkt Appelez-nous -
140 10872101 Arm, Water Actuator Appelez-nous -
150 10682106 Heater-cavity Appelez-nous -
160 M0211116 Screw, Sm Appelez-nous -
160 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

170 D7854104 Switch-photosensitive Appelez-nous -
180 10166002 Switch-crushed/cube Appelez-nous -
190 M0234003 Screw Appelez-nous -
270 A3030365 Gasket Appelez-nous -
430 10870801 Shelf, Ice Cream Appelez-nous -
450 10470302 Assy, Toe Grille (white) Appelez-nous -
500 A3030357 Gasket Appelez-nous -
NI R0156692 Kit,chute Dr No.3 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

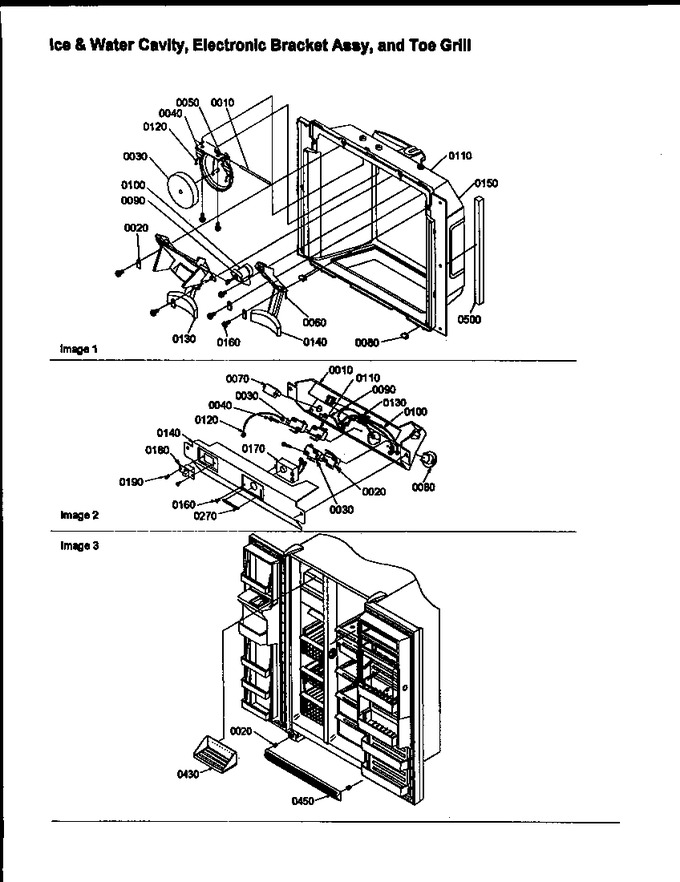

Diagram for SBD20S4W (BOM: P1190004W W)
