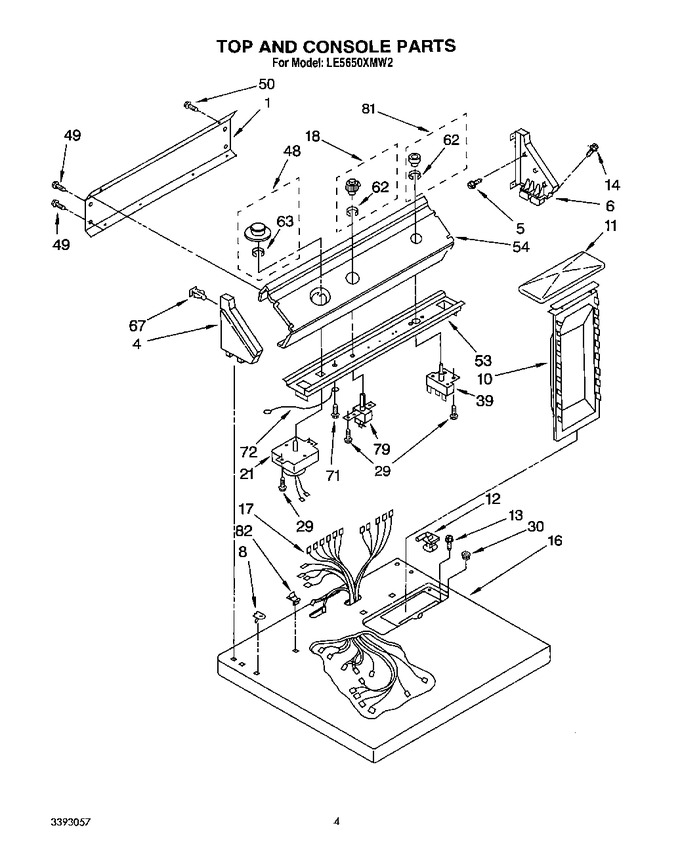

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 358470 | Panel, Rear Console |
|
- | |||||
| 4 | 375333 | Cap, End (l.h.) (white) |
|
- | |||||
| 5 | 355326 | Screw, 8-18 (4) |
|
- | |||||
| 6 | 375337 | Cap, End (r.h.) (white) |
|
- | |||||
| 8 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 358225 | Screw, 8-18 X 1 (2) |
|
- | |||||
| 16 | 688479 | Top (white) |
|
- | |||||
| 17 | 3393989 | Harness, Electric Wiring |
|
- | |||||
| 18 | 690292 | Control Knob, Temperature |
|
- | |||||
| 21 | 3393916 | Timer Assembly, 60 Hz. |
|
- | |||||
| 29 | WP3390631 | Screw, Tapping (2) (Replaces: 339554) |
|
$ 8.25 | |||||
| 30 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 39 | 692021 | (alt.) |
|
- | |||||
| 39 | 346364 | (alt.) |
|
- | |||||
| 39 | 660936 | Switch, Push-to-start |
|
- | |||||
| 48 | 690200 | Timer Knob |
|
- | |||||
| 49 | WP489069 | Screw, Hex Washer Head (4) (Replaces: 693994) |
|
Immediately | $ 8.40 | ||||
| 50 | WP693995 | Screw, Hex Washer Head (2) (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 53 | 359708 | Bracket, Control |
|
- | |||||
| 54 | 688350 | Panel, Console |
|
- | |||||
| 62 | 599530307 | Clip (Replaces: 90015) |
|
- | |||||
| 63 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 67 | 689559 | Nut, Push-in (4) |
|
- | |||||
| 71 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 79 | 694720 | Switch, Temperature |
|
- | |||||
| 81 | 346219 | Button, Push-to-start |
|
- | |||||
| 82 | 358472 | Stop, Push-in (2) |
|
- | |||||
| 82 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 82 | 299885 | Wire, Splicing 240 Volt |
|
- | |||||
| LIT3391427 | Guide, Dryer |
|
- | ||||||
| LIT677813 | Automatic Washer (belt Drive) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| LIT3393057 | List, Service Parts |
|
- | ||||||
| LIT3389444 | Instructions, Installation |
|
- | ||||||
| LIT3391339 | Use & Care Guide |
|
- | ||||||
| LIT677971 | Ice Maker (in Refrigerator) |
|
- | ||||||
| LIT677967 | Dishwasher |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 677821 | Compactor (Replaces: LIT677821) |
|
$ 35.01 | ||||||
| LIT677818 | Dryer |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
