Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10881001E Assy Ref Dr Fm Appelez-nous -
21 10861502 Liner-ref Dr Appelez-nous -
31 B0523590 Insul., Batt Appelez-nous -
32 R0181181 Closure, Door (blk)   (Replaces: 12113204) In-Stock Immediately $ 7.55

42 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

43 10883901 Bucket-beverage Appelez-nous -
53 10520410 Shelf, Chiller Appelez-nous -
63 10521814 Shelf-ref Door Appelez-nous -
72 10961002 Bushing, Door (blk) Appelez-nous -
81 10359710 Gasket, Door (e Ref) Appelez-nous -
113 10883801 Shelf, Dairy Appelez-nous -
121 10519004 Frame-chiller Appelez-nous -
132 10361804 Shim, Dr Bushing Appelez-nous -
133 12102909 Track-dairy Door Appelez-nous -
143 12102910 Track-dairy Door Appelez-nous -
161 M0226705 Screw, Shoulder Appelez-nous -
173 10519208 Door, Chiller Appelez-nous -
183 10162101 Glide-igloo Door Appelez-nous -
191 12033201 Tunnel-air Appelez-nous -
201 10165101 Clip-tubular Appelez-nous -
303 M0500706 Seal-o Ring Appelez-nous -
351 M0219730 Screw Special Order $ 7.65

381 10602605 Trim, Refrig Door (bottom) Appelez-nous -
391 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

413 12103001 Door-dairy Appelez-nous -
451 10202001 Clip, Retainer Appelez-nous -
471 10494603 Support Ref Trim (btm) Appelez-nous -
481 C8972403 Stop, Door (blk) Appelez-nous -
674 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

753 10520412 Shelf, Chiller Appelez-nous -
2234 12106213 Handle, Ref Dr (ebony) Appelez-nous -
2244 10945935 Insert-e Handle Appelez-nous -
2264 10979103 Ext.- E. Ref Dr,black Appelez-nous -
2284 10871205 Cap, Ref Handle Bot(black) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

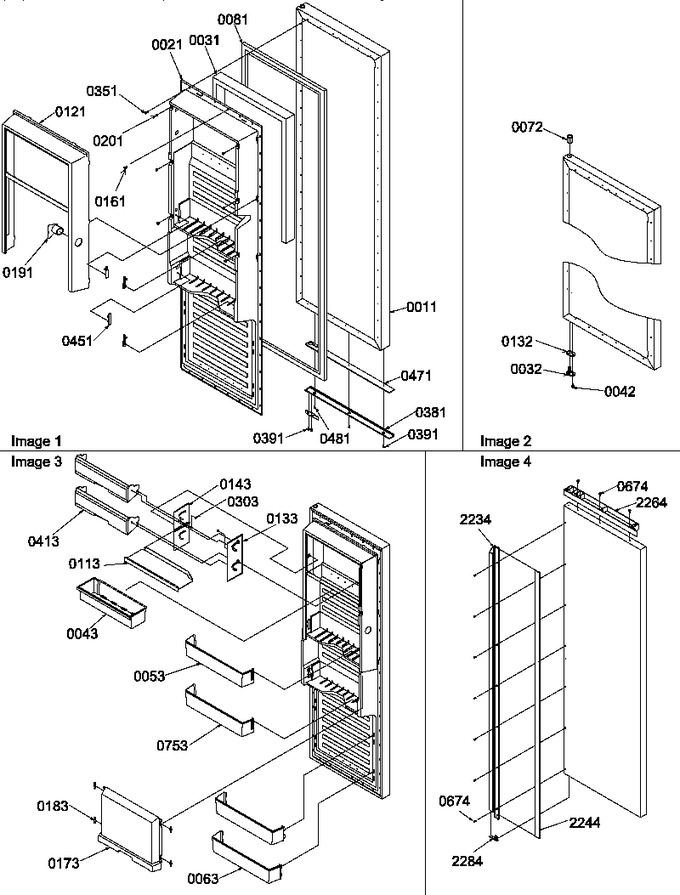

Diagram for SBD20TPE (BOM: P1190009W E)
