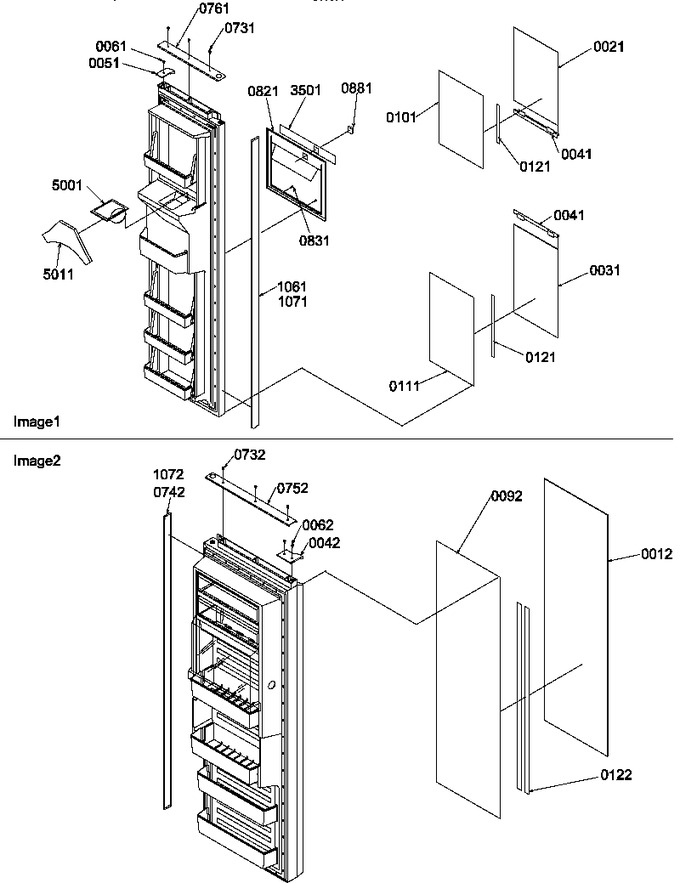

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10096940		Panel-white		Appelez-nous	-
21	10096945		Panel-white		Appelez-nous	-
31	10096983		Panel-w Fz Lw		Appelez-nous	-
41	B8391224		Ret-w Dec Pan		Appelez-nous	-
42	10871101		Cap, W Ref Handle Top		Appelez-nous	-
51	10871102		Cap-w Fz Hndl Top		Appelez-nous	-
61	M0213517		Screw K		Appelez-nous	-
62	M0213517		Screw K		Appelez-nous	-
92	10234611		Spacer-ref		Appelez-nous	-
101	10234609		Spacer, Frz Panel		Appelez-nous	-
111	10234614		Spacer, Frz Lw Pnl		Appelez-nous	-
121	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
122	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
731	M0213815		Screw		Appelez-nous	-
732	M0213815		Screw		Appelez-nous	-
742	10494523		Trim, Vert		Appelez-nous	-
752	10494419		Trim, Refr Dr Top		Appelez-nous	-
761	10494204		Trim-w Fz Dr Top		Appelez-nous	-
821	10986101		Facade-w Disp		Appelez-nous	-
831	M0219614		Screw K		Appelez-nous	-
881	12043806		Cap-white Switch		Appelez-nous	-
1061	10494524		Trim, Vert		Appelez-nous	-
1071	M0275178		Tape Double Back (roll)k		Appelez-nous	-
1072	M0275178		Tape Double Back (roll)k		Appelez-nous	-
3501	10984610		Insert-w Facade		Appelez-nous	-
5001	10504101		Chute, Ice		Appelez-nous	-
5011	12044501		Gasket-ice Chute		Appelez-nous	-
