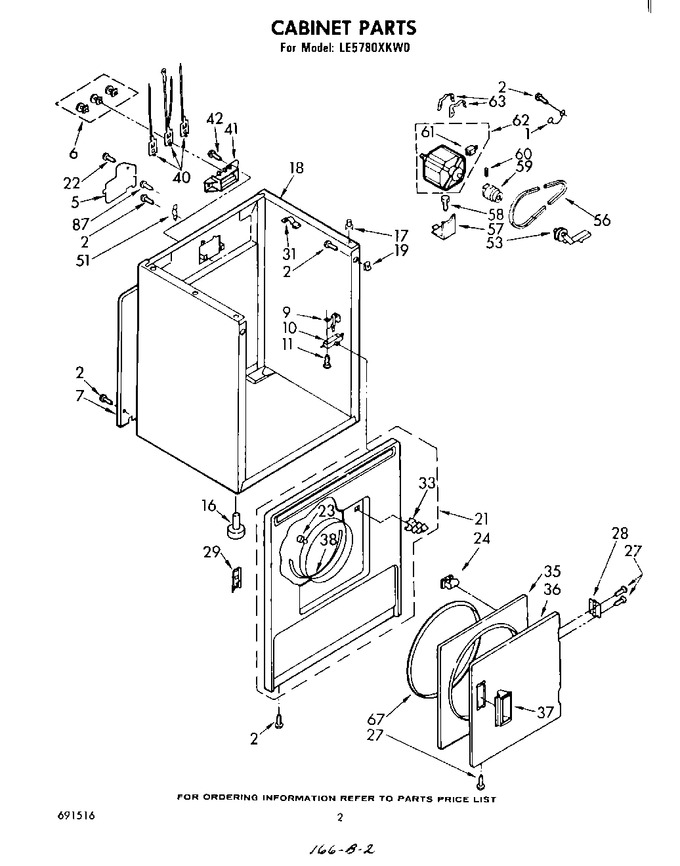

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	690236		Wire, Ground (motor)		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
5	W11736322		Cover, Terminal Block   (Replaces: 690893)		Appelez-nous	-
6	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 55.66
7	346368		Panel, Rear		Appelez-nous	-
9	WP691581		Clip, Door Switch   (Replaces: 295998)			Immediately	$ 8.09
10	W10820036		Switch, Door (alternate)   (Replaces: 347207)			Immediately	$ 30.50
11	WP98129		Screw (2)   (Replaces: 98129)				$ 7.56
16	49621		Foot, Dryer (4)   (Replaces: 688222)			Immediately	$ 8.55
17	WP18776		Locator, Top (2)   (Replaces: 690363)			Immediately	$ 12.68
18	690847		Cabinet (white)		Appelez-nous	-
18	690851		Cabinet (golden Harvest)		Appelez-nous	-
18	690850		Cabinet (new Avocado)		Appelez-nous	-
18	690848		Cabinet (almond)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
21	689298		Front Panel Assembly (new Avocado)		Appelez-nous	-
21	348390		Front Panel Assembly (white)		Appelez-nous	-
21	689294		Front Panel Assembly (almond)		Appelez-nous	-
21	689299		Front Panel Assembly (golden Wheat)		Appelez-nous	-
22	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
23	279220		Clip   (Replaces: 685203)				$ 23.55
24	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.89
27	689791		Screw		Appelez-nous	-
28	WP348023		Hinge & Pin (2)   (Replaces: 348023)				$ 8.42
29	W10854425		Clip, Front Panel (2)   (Replaces: 237823)			Immediately	$ 16.34
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.09
33	279570		Strike, Door   (Replaces: 690082)			Immediately	$ 8.89
35	280077		Door, Rear (white)   (Replaces: 348201)				$ 207.46
35	280077		Door, Rear (almond)   (Replaces: 689274)				$ 207.46
35	280077		Door, Rear (new Avocado)   (Replaces: 689276)				$ 207.46
35	280077		Door, Rear (golden Harvest)   (Replaces: 689277)				$ 207.46
36	689314		Door, Front (almond)		Appelez-nous	-
36	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 147.39
36	689318		Door, Front (new Avocado)		Appelez-nous	-
36	689319		Door Front (golden Harvest)		Appelez-nous	-
37	WP686711		Handle, Door (white)   (Replaces: 686715)			Immediately	$ 7.95
37	689584		Handle, Door (golden Harvest)		Appelez-nous	-
37	689583		Handle, Door (new Avocado)		Appelez-nous	-
37	689306		Handle, Door (almond)		Appelez-nous	-
38	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
40	279318		Terminal (brass)   (Replaces: 348913)			Immediately	$ 106.04
40	279318		Terminal (tinned)   (Replaces: 348912)			Immediately	$ 106.04
41	279320		Block, Terminal   (Replaces: 690261)			Immediately	$ 68.25
42	WP308685		Screw   (Replaces: 98518)			Immediately	$ 7.87
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
53	WP691366		Idler & Pulley Assembly   (Replaces: 688166)			Immediately	$ 22.47
56	341241		Belt, Drive			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 14.04
59	W11233559		Pulley, 60 Hz. (includes Illus. 60)   (Replaces: 685011)				$ 113.89
60	690046		Set Screw		Appelez-nous	-
61	279827		Switch (use W/690870 Motor)   (Replaces: 337351)			Immediately	$ 191.95
61	279827		Switch ((use W/689788 Motor))   (Replaces: 349588)			Immediately	$ 191.95
62	279827		Motor Assembly (60 Hz. (alternate))   (Replaces: 690870)			Immediately	$ 191.95
62	279827		Motor Assembly (60 Hz. (alternate))   (Replaces: 689788)			Immediately	$ 191.95
63	WP660658		Clamp, Motor (alternate)   (Replaces: 343481)				$ 7.83
63	WP660658		Clamp, Motor (alternate)   (Replaces: 685441)				$ 7.83
67	W11613302		Seal, Door   (Replaces: 685763)				$ 53.63
87	WP681414		Screw, 10-32 X 1/2 (external Ground)   (Replaces: 690989)			Immediately	$ 7.85
