SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves Crisper Assemblies & Acs


04 - Drain Systems, Rollers, And Evap Assy


05 - Facade Cover,elec Brkt Assy & Toe Grille


06 - Fz Door


07 - Fz Shelves And Lights


08 - Ice Bucket Auger And Ice Maker Parts


09 - Ice Maker/control Assy


10 - Machine Compartment & Muffler Assy


11 - Ref Door & Door Trim And Handles


12 - Ref/fz Lights And Hinges


13 - Water Filter Assy

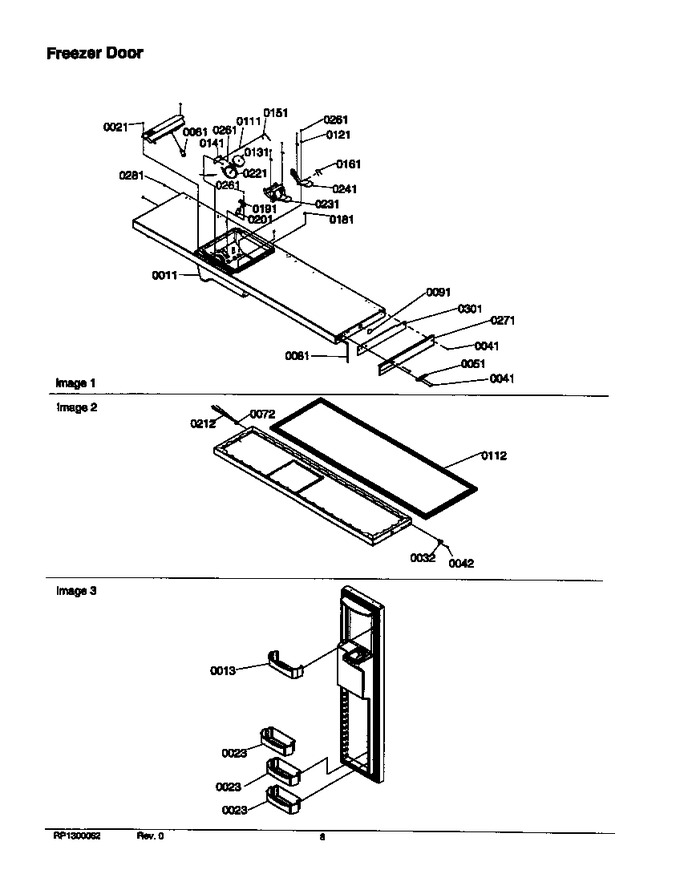

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12309903E		Assy, Frz Door		Appelez-nous	-
13	12311802		Shelf, Frz Door		Appelez-nous	-
21	M0216517		Screw		Appelez-nous	-
23	12311904		Bucket, Frz Door		Appelez-nous	-
32	R0181181		Closure-e Door   (Replaces: 12113203)			Immediately	$ 7.55
41	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	C8972403		Stop, Door (blk)		Appelez-nous	-
61	W10857122		Light Bulb   (Replaces: M0360001)				$ 14.52
72	C8964402		Bushing, Top		Appelez-nous	-
81	WPB5705307		Tubing, Plastic   (Replaces: B5705326)				$ 13.05
111	A1061501		Pin, Chute Door		Appelez-nous	-
112	R9800049		Assy,fz Dr Gasket(black)		Appelez-nous	-
121	A1061601		Retainer, Ice Arm		Appelez-nous	-
131	B8380701		Insulation, Chute Door		Appelez-nous	-
141	B8380801		Brkt-chute Door		Appelez-nous	-
151	B8380901		Spring,chute Door				$ 7.18
161	B8385401		Spring, Return		Appelez-nous	-
181	W10819546		Clip, Facade   (Replaces: B8390302)				$ 13.14
191	C8972501		Retainer Door Delay		Appelez-nous	-
201	C8973602		Delay, Door				$ 49.84
212	Y00000000		See Note Harness-fz Dr -- (not Replaceable)		Appelez-nous	-
221	10246601		Kit,chute Dr No.3		Appelez-nous	-
231	12102105		Arm, Gy Ice Actuator		Appelez-nous	-
241	10872110		Arm, Water Actuator (gray)		Appelez-nous	-
261	M0211116		Screw, Sm		Appelez-nous	-
271	10602503		Trim, Frz Dr (bottom) Ss		Appelez-nous	-
301	10494604		Support, Fz Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
