SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves, Crisper Assy


04 - Drain Systems, Rollers, And Evap Assy

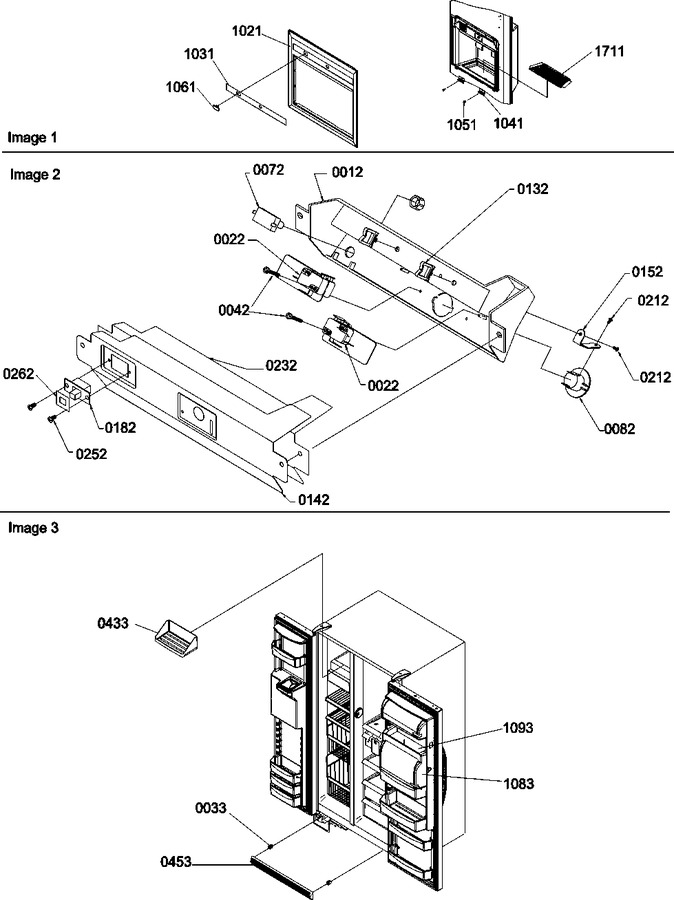

05 - Facade Dispenser Cover, Elec Brkt Assy


06 - Freezer Door


07 - Freezer Shelves And Lights


08 - Ice Bucket Auger And Ice Maker Parts


09 - Ice Maker/control Assy


10 - Machine Compartment & Muffler Assy


11 - Refrigerator Door, Door Trim And Handles


12 - Refrigerator/freezer Lights And Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10323305		Bracket, Elec Mtg		Appelez-nous	-
22	12419601		Switch, Limit		Appelez-nous	-
33	M0117303		Clip, Grille				$ 5.65
42	M0237809		Screw, T.f.		Appelez-nous	-
72	10166101		Switch-light Cavity				$ 6.49
82	D7845102		Socket, Lamp		Appelez-nous	-
132	B5667304		Wire Clip		Appelez-nous	-
142	10131805		Cover, Elec. Brkt		Appelez-nous	-
152	10295701		Bracket, Socket Mtg		Appelez-nous	-
182	10492402		Switch, Crushed/cube		Appelez-nous	-
212	M0230015		Screw		Appelez-nous	-
232	10419403		Insulation,disp Elec Brkt		Appelez-nous	-
252	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
262	10877104		Cover-switch		Appelez-nous	-
433	10870802		Shelf, Ice Cream		Appelez-nous	-
453	12321806		Kit, Toe Grille (blk)		Appelez-nous	-
1021	12314903		Facade, E Dispenser V		Appelez-nous	-
1031	10984646		Insert, Facade (black)		Appelez-nous	-
1041	C8992901		Clip		Appelez-nous	-
1051	M0216547		Screw		Appelez-nous	-
1061	12036402		Cap-switch Bk		Appelez-nous	-
1083	12424302		Assy, Chiller		Appelez-nous	-
1093	12309403		Shelf, Snack		Appelez-nous	-
1711	D7750602		Grille Sump (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
