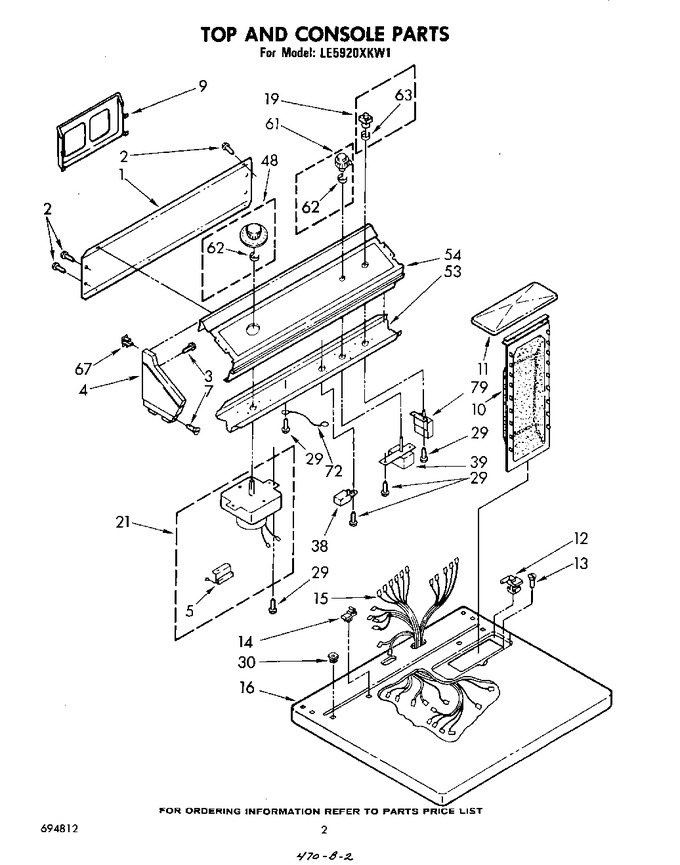

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 359372 | Panel, Rear Console |
|
- | |||||
| 2 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 8.40 | ||||
| 3 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 4 | 375305 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 375313 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 375318 | Cap, End (l.h.) (golden Harvest Cap, End (r.h.)) |
|
- | |||||
| 4 | 375309 | Cap, End L.h. (white) |
|
- | |||||
| 4 | 375315 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 377283 | Cap, End L.h. (golden Harvest) |
|
- | |||||
| 5 | 279872 | Resistor & Shield Assembly (Replaces: 686726) |
|
$ 78.69 | |||||
| 7 | 358225 | Screw, 8-18 X 1 |
|
- | |||||
| 9 | 357645 | Rack, Literature |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 689313 | Cover, Lint Screen (golden Harvest) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 358472 | Stop, Push-in (2) |
|
- | |||||
| 15 | 694747 | Harness, Wiring |
|
- | |||||
| 16 | 688479 | Top (white) |
|
- | |||||
| 16 | 689449 | Top (almond) |
|
- | |||||
| 16 | 689452 | Top (golden Harvest) |
|
- | |||||
| 19 | 689857 | Button Assembly |
|
- | |||||
| 21 | 690344 | Timer & Resistor Assembly, 60 Hz. |
|
- | |||||
| 29 | WP3390631 | Screw (Replaces: 339554) |
|
$ 8.25 | |||||
| 30 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 38 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 39 | 694720 | Switch, Rotary (temperature) |
|
- | |||||
| 48 | 690200 | Timer Knob Assembly |
|
- | |||||
| 53 | 359708 | Bracket, Control |
|
- | |||||
| 54 | 692003 | Panel, Control |
|
- | |||||
| 61 | 690292 | Control Knob Assembly |
|
- | |||||
| 62 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 63 | 599530307 | Clip (Replaces: 90015) |
|
- | |||||
| 67 | 689559 | Nut, Push-in (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 79 | 261890 | Golden Harvest |
|
- | |||||
| 79 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 79 | 350941 | Leveler (thinner) |
|
- | |||||
| 79 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 79 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 79 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 79 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 79 | 660648 | Switch, Push-to-start |
|
- | |||||
| 79 | 685067 | Switch, Push-to-start (alt.) |
|
- | |||||
| 79 | 348771 | Switch, Push-to-start (alt.) |
|
- | |||||
| 79 | 694345 | Instructions, Installation |
|
- | |||||
| 79 | 691275 | Use & Care Guide |
|
- | |||||
| 79 | 693849 | Guide, Dryer |
|
- | |||||
| 79 | 694812 | List, Parts |
|
- | |||||
| 79 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 79 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 261891 | Xgolden Harvest (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- |
