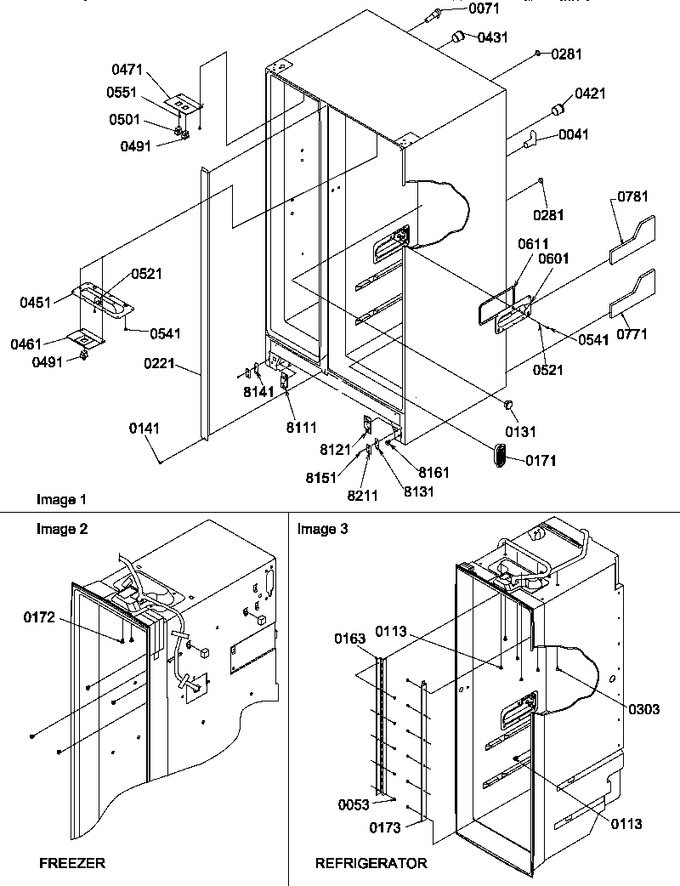

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 10906501 | Insulation, R Foot |
|
- | |||||
| 9 | B5733302 | Clip, Ground |
|
- | |||||
| 13 | 10906503 | Insulation, L.foot |
|
- | |||||
| 25 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 29 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 39 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 41 | C8971902 | Tunnel, Heat Ex. |
|
- | |||||
| 47 | M0581001 | Grommet, Screw |
|
- | |||||
| 53 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 71 | 12023401 | Assy, Fill Tube |
|
- | |||||
| 89 | 10270203 | Housing, Light |
|
- | |||||
| 113 | M0580007 | Grommet, Screw |
|
- | |||||
| 131 | 10923101 | Tunnel, Retainer |
|
- | |||||
| 141 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 13.47 | |||||
| 163 | D7789808 | Ladder, Cantilever |
|
- | |||||
| 165 | 10187501 | Tunnel Wire |
|
- | |||||
| 171 | D7785402 | Grille-rtn Air |
|
- | |||||
| 172 | M0580007 | Grommet, Screw |
|
- | |||||
| 173 | D7789809 | Ladder, Cantilever |
|
- | |||||
| 175 | 12146602 | Strip-lh Bot Hinge |
|
- | |||||
| 175 | 10187601 | Tunnel Wire |
|
- | |||||
| 185 | 12146601 | Strip-rh Bot Hinge |
|
- | |||||
| 195 | 12146801 | Spacer, Btm Hinge |
|
- | |||||
| 195 | D7716409 | Housing-ref Light |
|
- | |||||
| 205 | D7297603 | Cover, Light Sw |
|
- | |||||
| 205 | 12146802 | Shim-lh Bot Hinge |
|
- | |||||
| 215 | A4539631 | Rivet, Pop (wht) |
|
- | |||||
| 221 | Y00000000 | See Note Vt Mullion |
|
- | |||||
| 225 | 12147602 | Cam-hinge Adj |
|
- | |||||
| 235 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 245 | W11396033 | Switch, Light/intrlk (Replaces: C3680312) |
|
Immediately | $ 37.30 | ||||
| NI | A3189337 | Gasket |
|
- |
