SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet, Light Switches & Bottom Hinge


03 - Deli, Shelves, Crisper Assy.


04 - Facade Dispenser Cover, Elec Brkt Assy.


05 - Freezer Door


06 - Freezer Shelves And Lights


07 - Hinges, Drain, Rollers & Evap Assy.


08 - Ice Bucket Auger & Ice Maker Parts


09 - Ice Maker/control Assy.


10 - Light, Shelves & Bottom Door Closures


11 - Machine Compartment & Muffler Assy.


12 - Refrig Door & Trim And Handles


13 - Water Filter Assy. & Water Valves

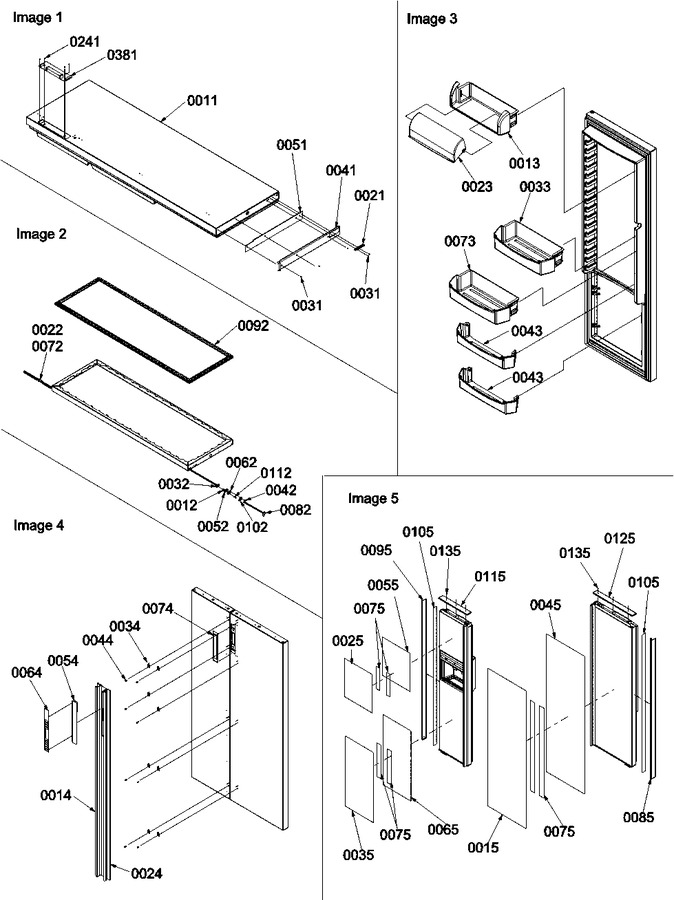

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12319701E		Assy, Ref Door (black) Sxs		Appelez-nous	-
12	B8390602		Grommet, Hinge Pin		Appelez-nous	-
13	Y12308602		Use 12308603		Appelez-nous	-
14	12312215		Handle, E Frz Door		Appelez-nous	-
15	12231916		Panel,e Ext Ref		Appelez-nous	-
21	C8972407		Stop, Door (blk)		Appelez-nous	-
22	B8381402		Grommet, Hinge Pin		Appelez-nous	-
23	12308701		Door, Dairy		Appelez-nous	-
24	12349905		Handle, E Ref Door		Appelez-nous	-
25	12231903		Panel, E Ext Up Frz		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
32	10361804		Shim, Dr Bushing		Appelez-nous	-
33	12309505		Bucket, Ref Door		Appelez-nous	-
34	12315101		Clip		Appelez-nous	-
35	12231905		Pnl, E Lwr Frz Dr		Appelez-nous	-
41	10602605		Trim, Refrig Door (bottom)		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
43	12311204		Shelf, Ref Door		Appelez-nous	-
44	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
45	12269206		Spacer, Ref Pnl (ext)		Appelez-nous	-
51	10494603		Support Ref Trim (btm)		Appelez-nous	-
52	R0181181		Closure, Door (blk)   (Replaces: 12113402)			Immediately	$ 7.55
54	10519401		Assy, Keyboard		Appelez-nous	-
55	12269203		Spacer, Frz Pnl (up Ext)		Appelez-nous	-
62	12113302		Closure, Door (blk)		Appelez-nous	-
64	10603113		Faceplate-e Elect		Appelez-nous	-
65	12269205		Spacer, Lwr Frz Door		Appelez-nous	-
72	C8964402		Bushing, Top		Appelez-nous	-
73	12309507		Bucket, Ref Door		Appelez-nous	-
74	12414301		Gasket, Control		Appelez-nous	-
75	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
82	M0335412		Connector-12 Pin		Appelez-nous	-
85	10494507		Trim, Vertical (black)		Appelez-nous	-
92	R9800048		Assy,ref Dr Gasket(black)		Appelez-nous	-
95	10494508		Trim, Vertical (black)		Appelez-nous	-
102	10361802		Shim, Dr Bushing		Appelez-nous	-
105	R0195042		Double Backed Tape 6ft Roll		Appelez-nous	-
112	10561601		Assy, Hinge Pin		Appelez-nous	-
115	10494212		Trim-e Fz Dr Top		Appelez-nous	-
125	10494417		Trim-e Ref Dr Top		Appelez-nous	-
135	WP98008545		Screw, Sm (blk)   (Replaces: M0210443)				$ 18.60
241	M0217204		Screw		Appelez-nous	-
381	10614402		Board, L.v. X		Appelez-nous	-
	NOTE:		Xnote: Ref Dr Foam Assy Includes Liner, Gasket, Harness-ref Dr Plus Items 0012, 0022, 0032, 0052, 0062, 0082, 0102, & 0112)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
