SELECT A DIAGRAM

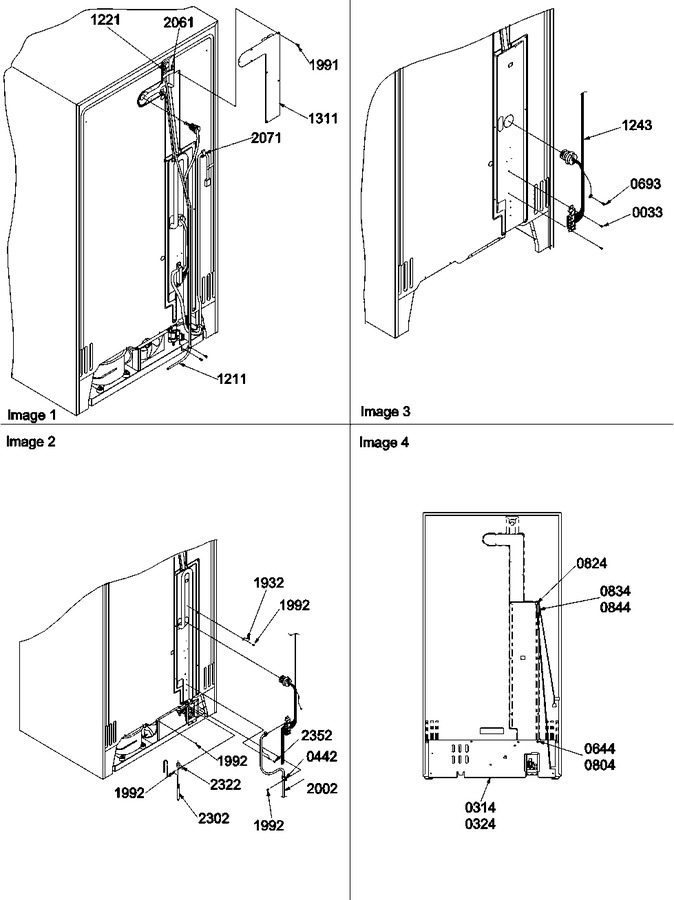

01 - Cabinet Back


02 - Cabinet, Light Switches & Bottom Hinge


03 - Deli, Shelves, Crisper Assy.


04 - Facade Dispenser Cover, Elec Brkt Assy.


05 - Freezer Door


06 - Freezer Shelves And Lights


07 - Hinges, Drain, Rollers & Evap Assy.


08 - Ice Bucket Auger & Ice Maker Parts


09 - Ice Maker/control Assy.


10 - Light, Shelves & Bottom Door Closures


11 - Machine Compartment & Muffler Assy.


12 - Miscellaeous Information


13 - Refrig Door & Trim And Handles


14 - Water Filter Assy. & Water Valves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
33	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
121	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
122	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
124	10983503		Harness, Cabinet		Appelez-nous	-
131	10178505		Cover - Wire		Appelez-nous	-
193	B5794201		Clamp		Appelez-nous	-
200	10678503		Cord, Power		Appelez-nous	-
206	A3189336		Gasket, Foam		Appelez-nous	-
207	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
230	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
232	10547002		Clip, Drier		Appelez-nous	-
235	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
314	12194404		Assy, M.c.back		Appelez-nous	-
324	M0219704		Screw		Appelez-nous	-
442	M0103904		Clamp, Speed		Appelez-nous	-
644	M0108001		Clamp, Tube		Appelez-nous	-
693	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
804	M0227217		Screw, Sm		Appelez-nous	-
824	M0103904		Clamp, Speed		Appelez-nous	-
834	10178405		Cover, O.c.back		Appelez-nous	-
844	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
