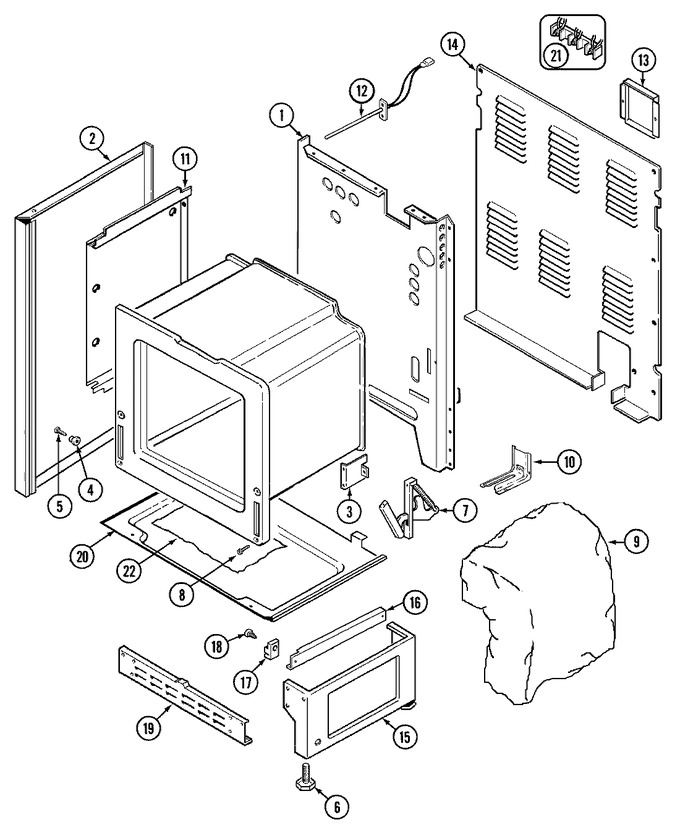

01 - Body (6892xvb)


02 - Door/drawer (6892xvb)


03 - Internal Controls (6892xvb)


04 - Oven (6892xvb)


05 - Top Assembly (6892xvb)


06 - Wiring Information (6892xvb)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001873		Back, Main	30	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 14.72
2	2618F107-70		Panel, Side (rt-blk)	30	Appelez-nous	-
2	2618F106-70		Panel, Side (lt-blk)	30	Appelez-nous	-
3	3807F400-51		Support,oven Rear	30	Appelez-nous	-
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 14.72
4	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	30			$ 8.25
5	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	30		Immediately	$ 14.76
6	W11665456		Leg, Leveling   (Replaces: 74002557)	30		Immediately	$ 29.52
6	4005F420-80		Cover, Leveling Leg	30	Appelez-nous	-
7	7106P056-60		Hinge	30	Appelez-nous	-
7	WP74011140		Hinge, Door   (Replaces: 74003243)	32		Immediately	$ 190.84
8	WP4159193		Screw   (Replaces: 7101P112-60)	30			$ 5.07
9	74001800		Insulation, Back	30	Appelez-nous	-
9	74003037		Insulation, Oven Wrap	30	Appelez-nous	-
10	WP7101P485-60		Screw   (Replaces: 7101P352-60)	30			$ 30.72
10	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74002311)	30		Immediately	$ 6.11
11	74003422		Retainer, Insulation (side)	30	Appelez-nous	-
12	12001656		Sensor, Oven (long)   (Replaces: 74003095)	30		Immediately	$ 50.14
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	30		Immediately	$ 14.72
13	4005F427-51		Cover, Access	30	Appelez-nous	-
14	4005F447-51		Cover, Wire	30	Appelez-nous	-
15	74003003		Pedestal, Side	30	Appelez-nous	-
16	3406F028-51		Runner, Drawer	30	Appelez-nous	-
16	74003565		Runner, Drawer	33	Appelez-nous	-
17	74003566		Roller, Drawer	33	Appelez-nous	-
17	74002312		Support, Drawer	30			$ 27.09
17	WP488130		Nut   (Replaces: 7103P082-60)	33			$ 7.32
18	W10124350		Not Required Part Or See Note	33	Appelez-nous	-
18	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	30		Immediately	$ 8.20
19	4020F001-80		Pedestal, Front/rear	30	Appelez-nous	-
20	3804F112-51		Retainer, Insulation	30	Appelez-nous	-
21	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	30		Immediately	$ 35.17
22	8312P058-60		Foil, Insulation Retainer	30	Appelez-nous	-
