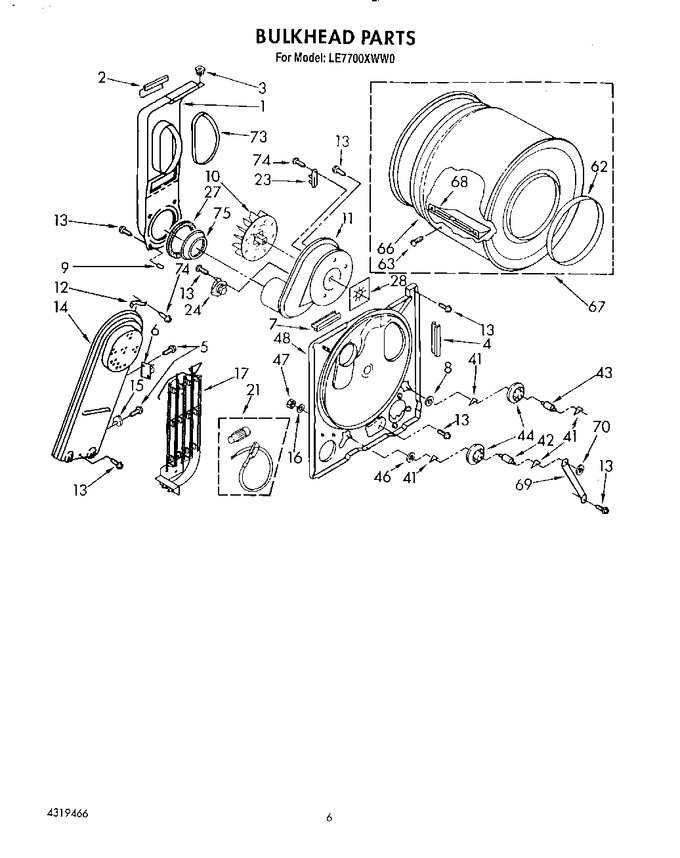

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 4319456) |
|
$ 183.76 | |||||
| 2 | 686770 | Support Protector |
|
- | |||||
| 3 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 4 | 686889 | Pad, Cabinet (Replaces: 9830337) |
|
- | |||||
| 5 | WP90767 | Screw, 8 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | 279769 | Thermal, Cut-off (hi-limit Thermostat Illus. No.15 Included) (Replaces: 3389946) |
|
Immediately | $ 62.85 | ||||
| 7 | 686889 | Pad, Cabinet (blower Housing) (Replaces: 3392247) |
|
- | |||||
| 8 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.85 | |||||
| 9 | W10491983 | Cap (Replaces: 359702) |
|
- | |||||
| 10 | WP694089 | Wheel, Blower (includes Illus. No. 28) (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | 4319317 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 4319315) |
|
$ 15.05 | |||||
| 13 | WP965173 | Screw, 10-16 X 3/8 (Replaces: 695239) |
|
Immediately | $ 11.87 | ||||
| 14 | 4319354 | Box, Heater |
|
- | |||||
| 15 | WP3390291 | Thermostat, High Limit 250~f (121.1~c) (60 Hz.) (Replaces: 3390291) |
|
Immediately | $ 94.94 | ||||
| 16 | 339492 | Washer, Support |
|
- | |||||
| 17 | WP4391960 | (alt.) (Replaces: 693062) |
|
Immediately | $ 60.56 | ||||
| 17 | WP4391960 | (alt.) (Replaces: 693300) |
|
Immediately | $ 60.56 | ||||
| 17 | WP4391960 | (alt.) (Replaces: 696579) |
|
Immediately | $ 60.56 | ||||
| 17 | WP4391960 | Element, Heater (for 240 Volt Installation) (Replaces: 660982) |
|
Immediately | $ 60.56 | ||||
| 21 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 23 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 24 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 27 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 28 | 3392123 | Seal, Blower Shaft |
|
- | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 4319306) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 4319304) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (Replaces: 3389901) |
|
Immediately | $ 29.53 | ||||
| 46 | 4319307 | Washer, Support |
|
- | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | 4319453 | Bulkhead |
|
- | |||||
| 62 | WP3394509 | Ring, Bearing (Replaces: 3394509) |
|
$ 131.65 | |||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 239087 | Seal, Rear Drum (Replaces: 4319323) |
|
Immediately | $ 62.78 | ||||
| 67 | 4319457 | Drum Assembly |
|
- | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 154.33 | |||||
| 69 | 4319310 | Bracket, Support |
|
- | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 8.24 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 9.06 | ||||
| 74 | WP489069 | Screw, 8 X 1/2ab (Replaces: 776076) |
|
Immediately | $ 8.40 | ||||
| 75 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 23.40 |
