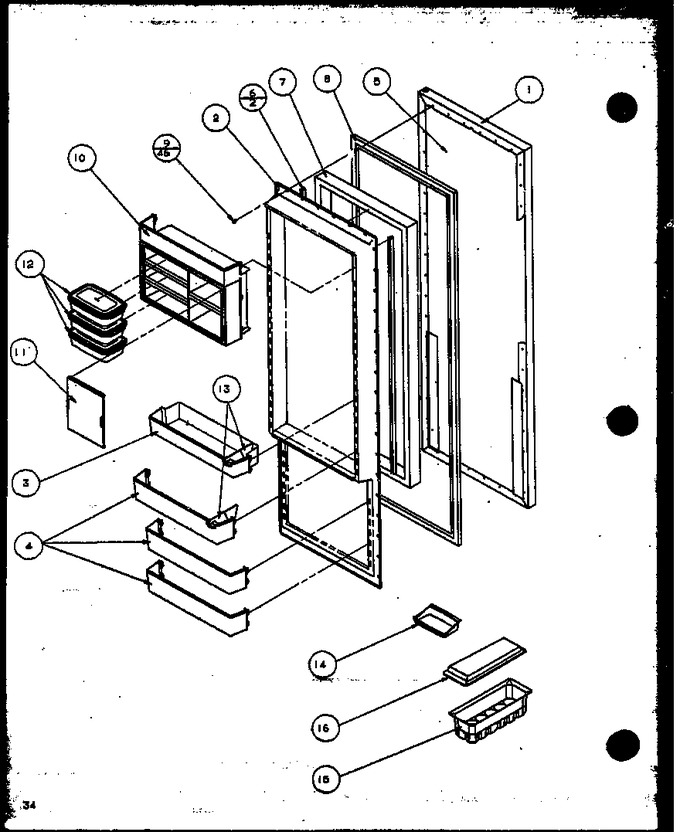

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7834034		Dr Pan, Ref, W		Appelez-nous	-
2	D7828203		Inner Door, Ref		Appelez-nous	-
3	D7783308		Bucket, Ref Door		Appelez-nous	-
4	D7783408		Shelf, Ref. Door		Appelez-nous	-
5	B0566723		Insulation		Appelez-nous	-
6	C8987104		Seal, Door Dike		Appelez-nous	-
7	B0523562		Insul. By The Ft.		Appelez-nous	-
8	10104401		Gasket, Door (w Ref)		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	D7781202		Module-dairy		Appelez-nous	-
11	D7781312		Door Dairy		Appelez-nous	-
12	D7806403		Container Sec. Ser.		Appelez-nous	-
13	D7814606		Snugger-dr Shelf		Appelez-nous	-
14	D3799802		Butter Tray		Appelez-nous	-
15	D7695615		Bucket, Egg		Appelez-nous	-
16	D7805908		Cover, Egg Bucket		Appelez-nous	-
