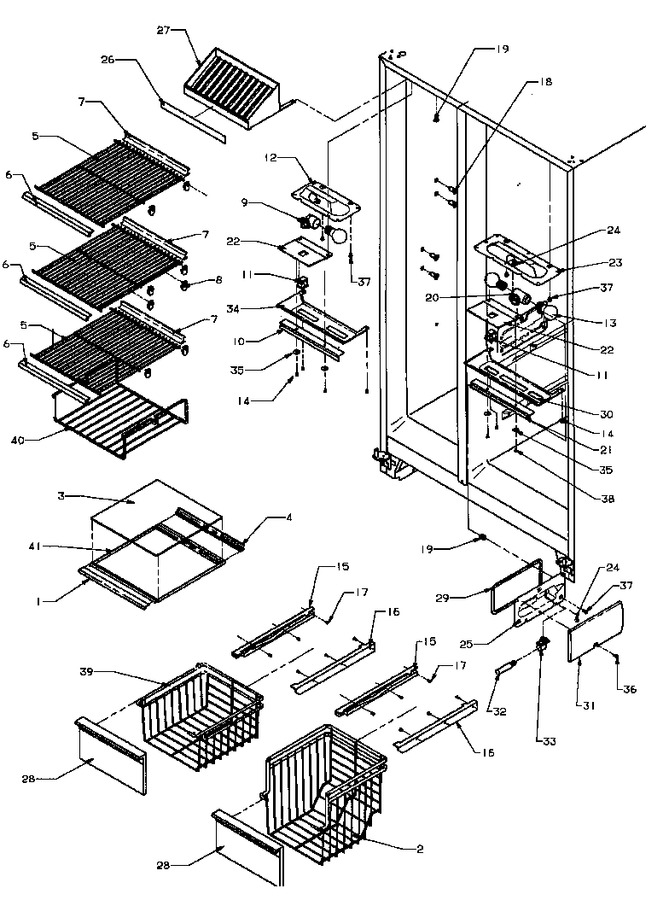

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10524317		Trim, Frz Shelf Frt		Appelez-nous	-
2	D7820802		Basket, Frz		Appelez-nous	-
3	10370053		Glass, Shelf		Appelez-nous	-
4	C8913609		Trim		Appelez-nous	-
5	D7788309		Shelf, Frz		Appelez-nous	-
6	10049937		Trim, Shelf (front)		Appelez-nous	-
7	C8913609		Trim		Appelez-nous	-
8	C8973801		Support, Frz Shelf				$ 8.35
9	C8973404		Socket-light		Appelez-nous	-
10	10014715		Shield, Light		Appelez-nous	-
11	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 35.18
12	D7760102		Housing Frz Light		Appelez-nous	-
13	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
14	M0219546		Screw		Appelez-nous	-
15	10282303		Glide, Frz L.h.		Appelez-nous	-
16	10282304		Glide, Frz. L.h.		Appelez-nous	-
17	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
18	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
19	M0580007		Grommet, Screw		Appelez-nous	-
20	10796001		Socket, Dual Lamp		Appelez-nous	-
21	10014716		Shield, Light		Appelez-nous	-
22	D7297603		Cover, Light Sw		Appelez-nous	-
23	D7716404		Housing-ref Light		Appelez-nous	-
24	B5733302		Clip, Ground		Appelez-nous	-
25	10270201		Housing, Light		Appelez-nous	-
26	C8986123		Insert, Juice Rack		Appelez-nous	-
27	D7839703		Rack, Juice V		Appelez-nous	-
28	D7820728		Front,basket		Appelez-nous	-
29	A3189337		Gasket		Appelez-nous	-
30	10493201		Cover, Ref. Light		Appelez-nous	-
31	Y10270101		Cover-light		Appelez-nous	-
32	WPA3073101		Bulb 120v. 40w.   (Replaces: A3079001)			Immediately	$ 11.45
33	10281601		Socket-light		Appelez-nous	-
34	10493301		Cover, Frz Light		Appelez-nous	-
35	M0270508		Washer		Appelez-nous	-
36	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 7.88
37	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.57
38	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 6.57
39	10606301		Basket, Freezer		Appelez-nous	-
40	10729201		Rack, Freezer		Appelez-nous	-
41	10606401		Frame, Frz Shelf		Appelez-nous	-
42	10049964		Trim, Shelf Front		Appelez-nous	-
NI	10607102		Ass`y, Glass Frz Shlf		Appelez-nous	-
