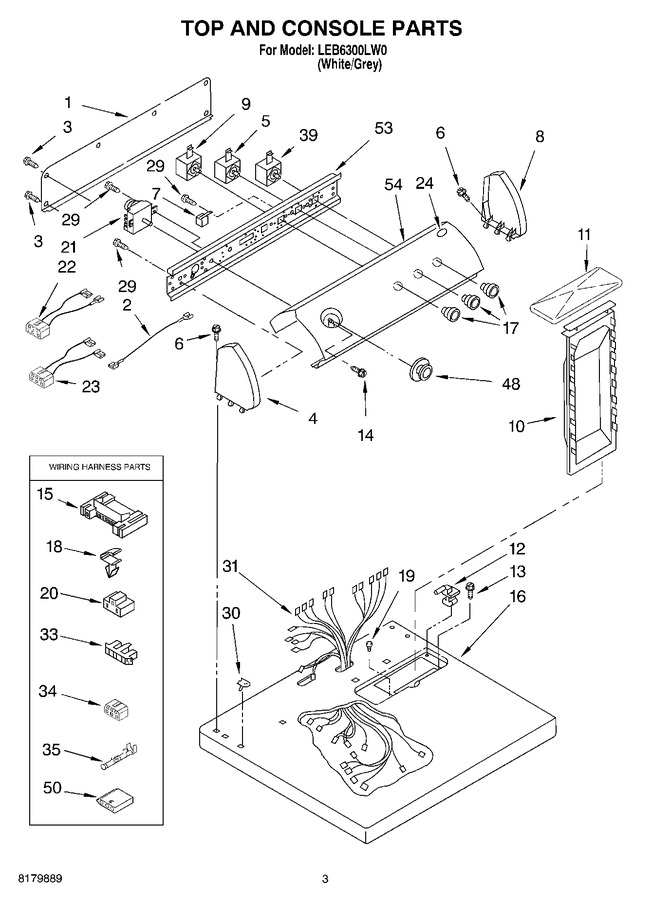

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 2 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 5 | WP3405156 | Switch, Wrinkle Shield (Replaces: 3405156) |
|
$ 137.51 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 8 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 9 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
Immediately | $ 118.04 | ||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 41.46 | ||||
| 11 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 7.30 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 7.30 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | 3400859 | Screw, Grounding |
|
$ 12.49 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 16 | 8271390 | Top |
|
- | |||||
| 17 | WP8538957 | Knob, Control (3) (Replaces: 8316540) |
|
$ 52.68 | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 19 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 20 | 3401144 | Connector, (pts Relay) |
|
$ 11.53 | |||||
| 21 | WP3979618 | Timer, 60 Hz. (Replaces: 3979618) |
|
$ 346.75 | |||||
| 22 | 3397695 | Wire, Jumper (guard On/off) |
|
$ 81.65 | |||||
| 23 | 8539893 | Wire, Jumper (temperature) (Replaces: 3396029) |
|
$ 17.80 | |||||
| 24 | 3955775 | Medallion |
|
- | |||||
| 29 | WPW10139210 | Screw, Mounting (8-18 X 5/16) (Replaces: 3390646) |
|
$ 7.23 | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 31 | 8299873 | Harness, Wiring |
|
- | |||||
| 33 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 34 | 3347243 | Connector 6-circuit |
|
- | |||||
| 35 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 39 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 83.59 | ||||
| 48 | WP8557455 | Timer Knob Assembly (Replaces: 8316538) |
|
$ 53.65 | |||||
| 50 | 3936144 | Connector |
|
$ 19.10 | |||||
| 53 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 54 | 8532609 | Panel, Control (includes Illus. 24) |
|
- |
