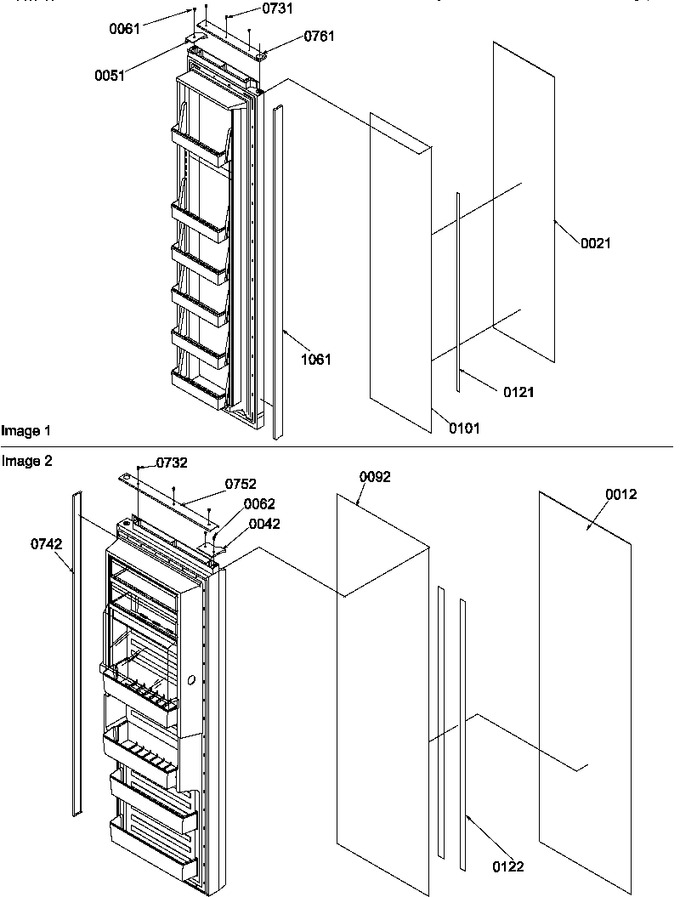

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10096942		Panel-almond		Appelez-nous	-
21	10096941		Panel-almond		Appelez-nous	-
37	10494521		Trim-l Vertical		Appelez-nous	-
42	10871103		Cap, Ref Handle Top(almond)		Appelez-nous	-
51	10871104		Cap, Frz Handle Top(almond)		Appelez-nous	-
61	M0213517		Screw K		Appelez-nous	-
62	M0213517		Screw K		Appelez-nous	-
92	10234611		Spacer-ref		Appelez-nous	-
101	10234612		Spacer		Appelez-nous	-
121	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
122	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
219	M0213815		Screw		Appelez-nous	-
220	M0213815		Screw		Appelez-nous	-
230	10494520		Trim-l Vertical		Appelez-nous	-
240	10494405		Trim-l Ref Dr Top		Appelez-nous	-
249	10494205		Trim-l Fz Dr Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
