01 - Backguard
02 - Broiler Drawer Assy
03 - Cabinet Assy
04 - Oven Components
05 - Oven Door
06 - Top Burner Assy
SELECT A DIAGRAM
New Model Search:

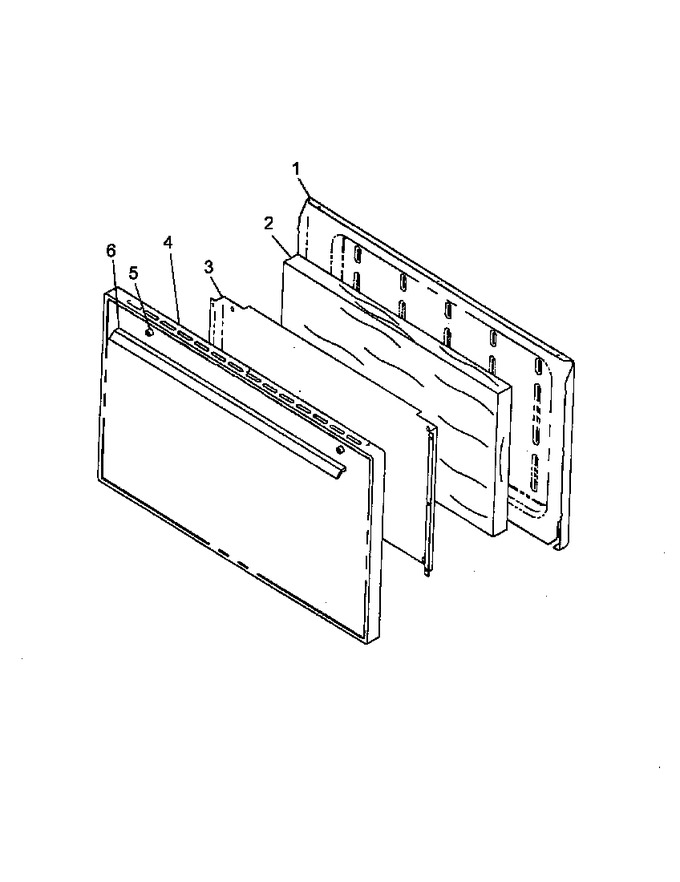

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 06567200E | Liner, Oven Door |
|
- | |||||
| 2 | Y07724400 | Insulation,wrapper |
|
- | |||||
| 3 | Y06567400 | Baffle, Oven Door 20`` |
|
- | |||||
| 4 | 313754W | Panel, Oven Door (white) |
|
- | |||||
| 5 | Y0310818 | Handle Spacer, Plastic (j) |
|
- | |||||
| 6 | Y0052776 | Handle, Oven Door (j) |
|
- | |||||
| NI | WP7101P126-60 | Screw, No.10-12 X 500`` Ab (zn) (Replaces: Y01063001) |
|
Immediately | $ 8.36 | ||||
| NI | Y0310804 | Screw No.10 X 1/2`` |
|
- | |||||
| NI | Y0311884 | Screw, Door Handle |
|
- |
