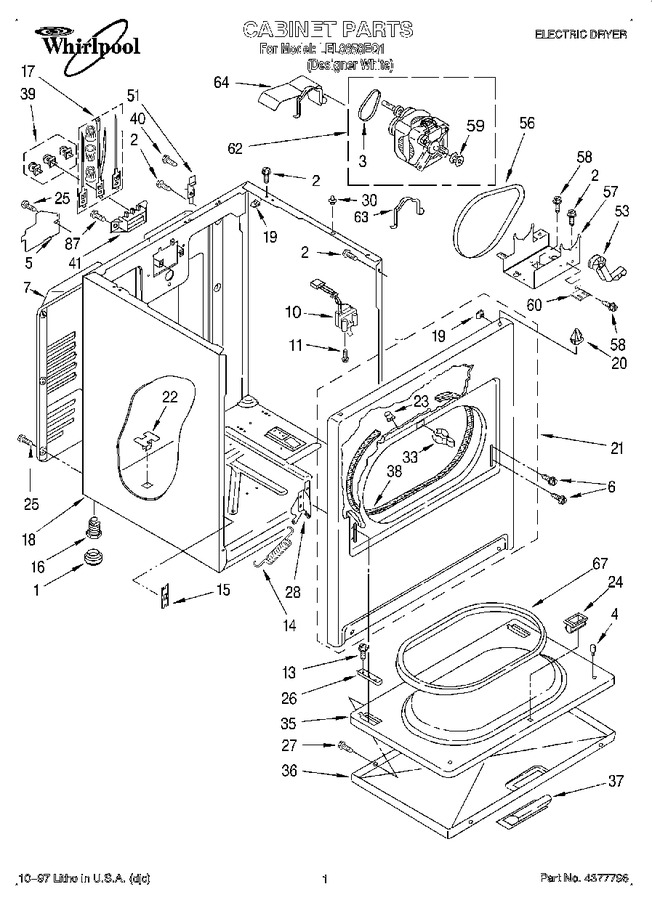

01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.82 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 35.23 | ||||
| 4 | 238614 | Bumper |
|
$ 80.76 | |||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 599.76 | ||||
| 6 | 342043 | Screw, 10-32 X 1/2 |
|
- | |||||
| 7 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 341.30 | |||||
| 10 | WP3406107 | Door, Switch Assembly (Replaces: 3406101) |
|
Immediately | $ 31.20 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.70 | |||||
| 13 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 14 | WPW10041960 | Spring, Door (2) (Replaces: 692495) |
|
Immediately | $ 40.67 | ||||
| 15 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 15.56 | ||||
| 16 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 17 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 39) |
|
Immediately | $ 100.99 | ||||
| 18 | 8533643 | Cabinet (includes Illus. Nos. 5, 7, 15, 16, 41 & 57) (white) (Replaces: 3399593) |
|
$ 399.26 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 18776) |
|
Immediately | $ 12.68 | ||||
| 21 | 279443 | Panel, Front (white) (Replaces: 695620) |
|
$ 386.20 | |||||
| 22 | 3404283 | Plug, Cabinet (2) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (3) (Replaces: 685203) |
|
$ 20.65 | |||||
| 24 | 279570 | Catch, Door Assembly (Replaces: 3398175) |
|
Immediately | $ 8.89 | ||||
| 25 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 26 | W11252547 | Clip, Hinge (2) (Replaces: 337189) |
|
$ 21.39 | |||||
| 27 | WP694091 | Screw (6) (Replaces: 694091) |
|
$ 7.19 | |||||
| 28 | WP8066056 | Hinge, R.h. (Replaces: 692498) |
|
Immediately | $ 98.56 | ||||
| 28 | WP8066057 | Hinge, L.h. (Replaces: 692501) |
|
$ 96.14 | |||||
| 30 | 98669 | Locator, Top (2) |
|
$ 12.03 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 35 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 254.56 | |||||
| 36 | WP3393549 | Door, Front (white) (Replaces: 3393549) |
|
$ 176.51 | |||||
| 37 | WP348721 | Handle, Door (white) (Replaces: 690270) |
|
$ 77.89 | |||||
| 38 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 78.78 | ||||
| 39 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 47.37 | ||||
| 40 | W10850756 | Screw, 10-16 X 1/2 (Replaces: 697776) |
|
$ 7.76 | |||||
| 41 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 23.02 | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.82 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive (drum) (Replaces: 660996) |
|
Immediately | $ 18.15 | ||||
| 57 | 3406228 | Base, Motor |
|
- | |||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 13.37 | ||||
| 59 | WP8066184 | Pulley 60 Hz (Replaces: 3389627) |
|
Immediately | $ 51.02 | ||||
| 60 | 3401805 | Bracket, Idler |
|
- | |||||
| 62 | WPW10396039 | Motor Assembly 60 Hz. (Replaces: 3405478) |
|
$ 241.68 | |||||
| 63 | WP660658 | Clamp, Motor (1) (Replaces: 660658) |
|
$ 7.83 | |||||
| 64 | 3401800 | Belt, Shield Assembly |
|
- | |||||
| 67 | W10906683 | Seal, Door (Replaces: 3390731) |
|
$ 128.53 | |||||
| 87 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 |
