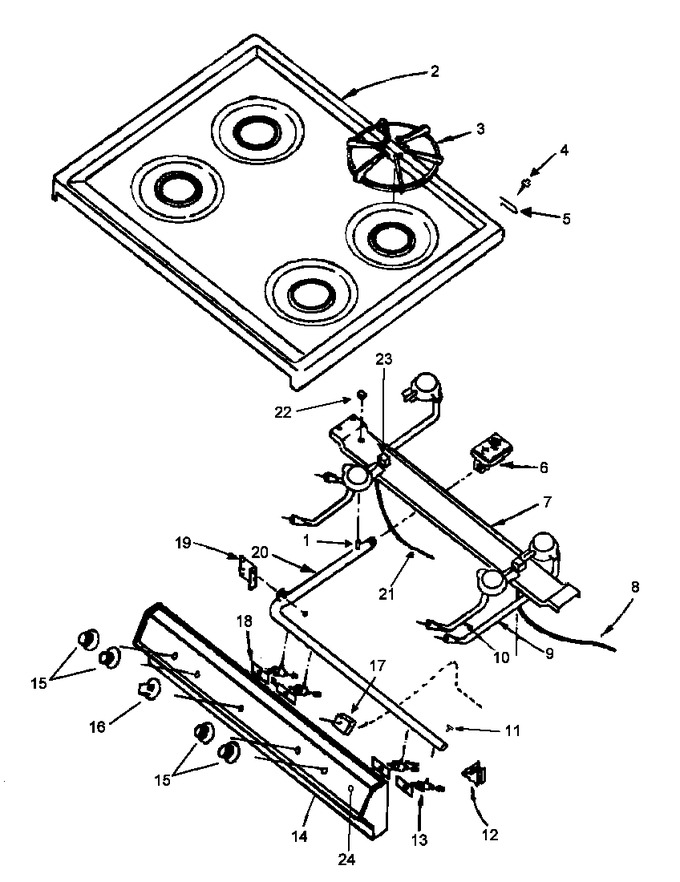

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0310219		Spacer, Manifold		Appelez-nous	-
2	057241W		Main Top, White		Appelez-nous	-
3	Y07540300		Grate, 7`` Round Burner		Appelez-nous	-
4	Y0310036		Screw, Stud		Appelez-nous	-
5	Y0310032		Nut, Speed, Flat		Appelez-nous	-
6	Y0088783		Pressure Regulator		Appelez-nous	-
7	Y0312239		Burner Support		Appelez-nous	-
8	Y07521502		Harness, Spark Switch		Appelez-nous	-
9	Y0310185		Sub 57358, Burner, Rear		Appelez-nous	-
10	Y0310185		Sub 57358, Burner, Rear		Appelez-nous	-
11	Y0056115		Surface Valve Bolt& Gasket		Appelez-nous	-
12	06461401		Brkt, Manifold Rh		Appelez-nous	-
13	Y0057338		Valve, Top Burner		Appelez-nous	-
14	0311069		Manifold Panel W/light Hole		Appelez-nous	-
15	WPY07506601		Knob, Thermostat   (Replaces: Y0086991)				$ 71.30
16	WPY07506601		Knob, Thermostat   (Replaces: Y0086991)				$ 71.30
17	WP878009		Switch, Spark, O.h.c.   (Replaces: Y0089068)				$ 120.61
18	WP4157180		Switch, Spark Valve   (Replaces: Y07455200)				$ 119.66
19	0086725		Support, Manifold, L.h. {j}		Appelez-nous	-
20	0057336		Manifold Pipe		Appelez-nous	-
21	Y0057254		Igniter-spk, Top Burner		Appelez-nous	-
22	0088650		Square Nut {j}		Appelez-nous	-
23	Y0312158		Ignitor, Ground Strap		Appelez-nous	-
24	Y0310516		Switch, Oven Light		Appelez-nous	-
NI	0310234		Screw No.10 X 5/16		Appelez-nous	-
NI	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y01063001)			Immediately	$ 8.36
