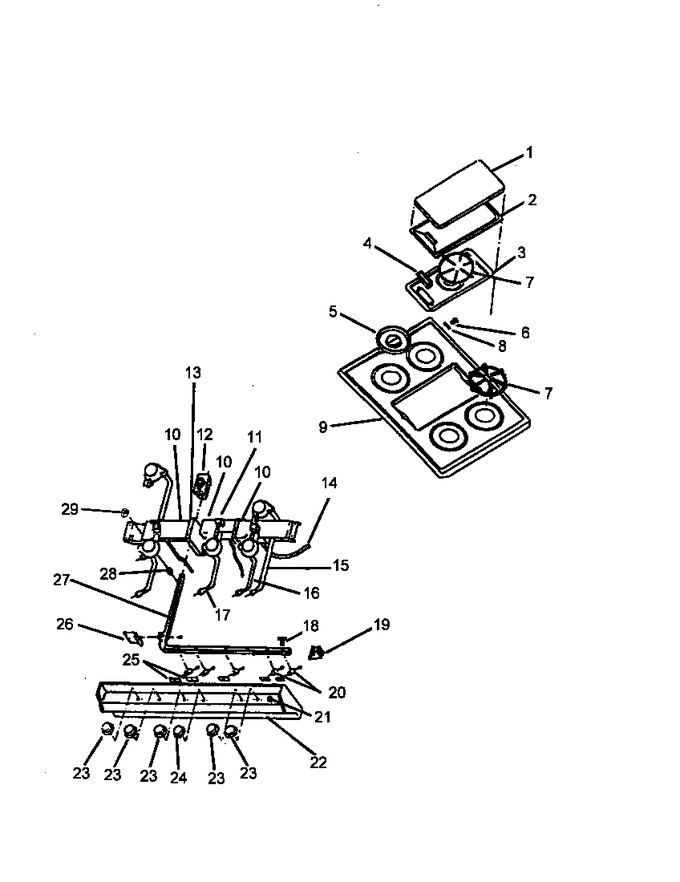

05 - Top Burner Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	088529N		Griddle, Cover (almond)		Appelez-nous	-
2	Y0088634		Griddle		Appelez-nous	-
3	088528N		Insert, Center, Top, Almond		Appelez-nous	-
4	Y06554200E		Cup - Grease		Appelez-nous	-
5	Y0057287		Liner, Chrome Bowl		Appelez-nous	-
6	Y0310036		Screw, Stud		Appelez-nous	-
7	Y07540300		Grate, 7`` Round Burner		Appelez-nous	-
8	Y0310032		Nut, Speed, Flat		Appelez-nous	-
9	311048L		Top Main, Almond		Appelez-nous	-
10	0057344		Supt-top Brnr,lh,		Appelez-nous	-
10	06451903		Support, Ctr Burner		Appelez-nous	-
11	Y0086791		Ignitor, Griddle		Appelez-nous	-
12	Y0088783		Pressure Regulator		Appelez-nous	-
13	Y06445604		Support		Appelez-nous	-
13	Y06445603		Support		Appelez-nous	-
14	Y0057255		Igniter-spk, Top Burner		Appelez-nous	-
15	Y07698900		Burner - Top Rear (glwd)		Appelez-nous	-
16	Y07698800		Burner - Top Frt (glwd)		Appelez-nous	-
17	Y07699000		Burner - Top Griddle (glwd)		Appelez-nous	-
18	Y0056115		Surface Valve Bolt& Gasket		Appelez-nous	-
19	06461401		Brkt, Manifold Rh		Appelez-nous	-
20	Y0057338		Valve, Top Burner		Appelez-nous	-
21	Y0310516		Switch, Oven Light		Appelez-nous	-
22	07622005F		Panel, Manifold (gas)		Appelez-nous	-
23	WPY07506601		Knob, Thermostat   (Replaces: Y0086991)				$ 71.30
24	WPY07506601		Knob, Thermostat   (Replaces: Y0086991)				$ 71.30
25	WP4157180		Switch, Spark Valve   (Replaces: Y07455200)				$ 119.66
26	0086725		Support, Manifold, L.h. {j}		Appelez-nous	-
27	0057341		Manifold Pipe		Appelez-nous	-
28	0310219		Spacer, Manifold		Appelez-nous	-
29	0088650		Square Nut {j}		Appelez-nous	-
