SELECT A DIAGRAM

01 - Broiler Drawer Assy


02 - Cabinet Assy


03 - Oven Components


04 - Oven Door And Backguard Assy


05 - Top Burner Assy

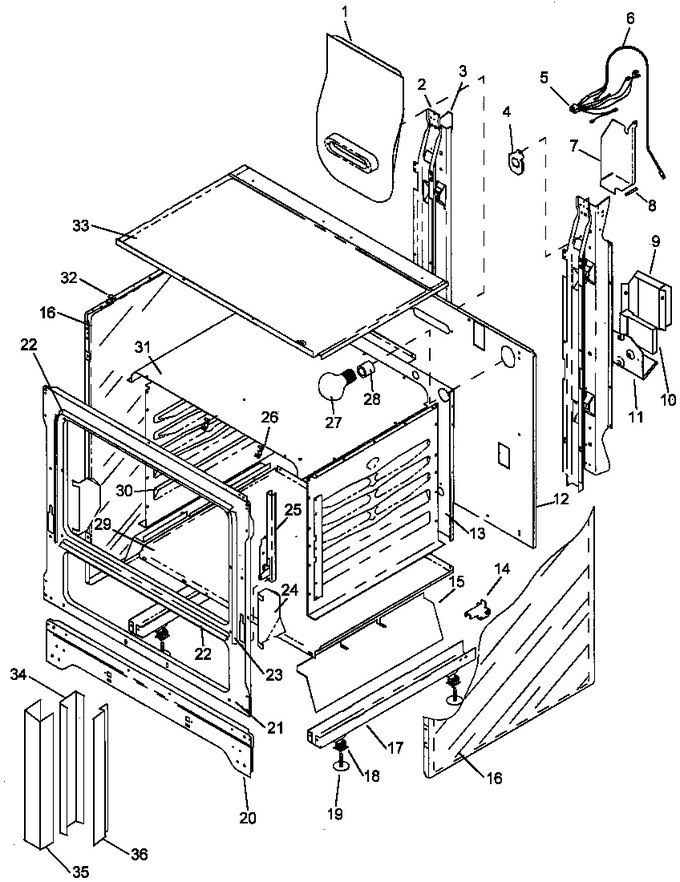

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0088718		Flue Box		Appelez-nous	-
2	0052742		Vertical Sup. (j)		Appelez-nous	-
3	0056477		Support, Rear, Vertical {j}		Appelez-nous	-
4	0311551		Bracket		Appelez-nous	-
5	0311093		Wire Harness		Appelez-nous	-
6	0088884		Cord Set (j)		Appelez-nous	-
7	Y0310809		Wire Cover (ov. Light) {j}		Appelez-nous	-
8	Y0310035		Safe Edge 1&9/16``by 1/2``		Appelez-nous	-
9	06462003		Cover, Spark Module		Appelez-nous	-
10	Y07725100		Module, 3+1 Spark		Appelez-nous	-
11	Y0087725		Plate, Spark Module		Appelez-nous	-
12	0311055		Main Back		Appelez-nous	-
13	Y03382001E		Backliner, Oven (enamel)		Appelez-nous	-
14	07687600		Kit, Anti-tip		Appelez-nous	-
15	0310816		Radiation Shield, Broiler		Appelez-nous	-
16	313762W		Panel, Texture Body		Appelez-nous	-
17	06555001		Rail, Base		Appelez-nous	-
18	0310033		Clip, Speed (doz) {j}		Appelez-nous	-
19	W11117769		Leveler, Leg   (Replaces: Y01084002)			Immediately	$ 19.37
20	Y06451701		Panel, Toe 36`` (black)		Appelez-nous	-
21	Y00000000		See Note Mn Frt-frm,gas,enam -- (not Field Replaceable)		Appelez-nous	-
22	Y0056091		Seal, Oven-top & Bottom 30``		Appelez-nous	-
23	Y0056090		Seal, Oven-sides		Appelez-nous	-
24	0310053		Shield, Insulation {j}		Appelez-nous	-
25	Y0086790		Hinge, Oven Door		Appelez-nous	-
26	01052001		Clip, Capillary		Appelez-nous	-
27	40A15		Lamp 40 Watt   (Replaces: A0282806)			Immediately	$ 1.98
28	Y0088674		Socket, Oven Light		Appelez-nous	-
29	Y06467101		Baffle, Base (30``gas)		Appelez-nous	-
30	0311807		Liner,oven Side		Appelez-nous	-
31	Y06470802E		Topliner, Oven 30``gas		Appelez-nous	-
32	Y0087002		Sub 63661, Bumper, Ov. Dr.		Appelez-nous	-
33	311008E		Burner Box Bottom, 36`` Cg		Appelez-nous	-
34	R0708249		Trim, Side-brushed		Appelez-nous	-
35	Y06488210B		Panel-filr,side, 36``		Appelez-nous	-
36	Y0088594		Support, Side Filler		Appelez-nous	-
NI	0310038		Insulation Back (j)		Appelez-nous	-
NI	Y0310039		Insulation,wrapper		Appelez-nous	-
NI	WP4159193		Screw,philip Pan Hd 10-24x5/16   (Replaces: Y0310611)				$ 5.07
NI	Y0310113		Clamp, Speed		Appelez-nous	-
NI	0310054		Support, Side Liner {j}		Appelez-nous	-
NI	Y01001303		Screw-no.10x9/16 Decr,bl		Appelez-nous	-
NI	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y01063001)			Immediately	$ 8.36
NI	Y01000300		Screw, 10 X 1-1/2		Appelez-nous	-
NI	Y0056088		Screw {j}		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
