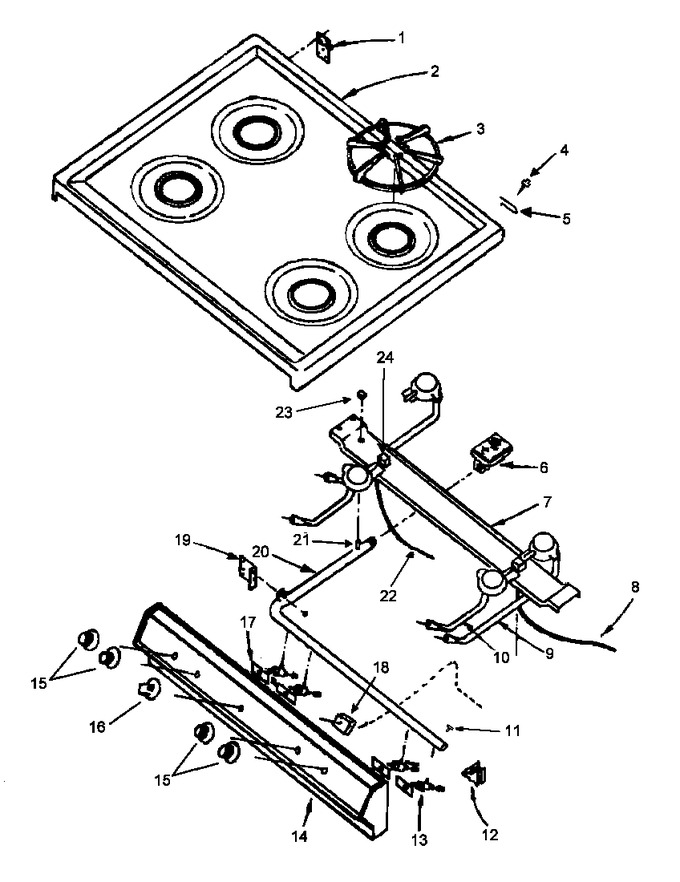

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	06460905W		Main Top White		Appelez-nous	-
3	Y07540300		Grate, 7`` Round Burner		Appelez-nous	-
4	Y0310036		Screw, Stud		Appelez-nous	-
5	Y0310032		Nut, Speed, Flat		Appelez-nous	-
6	Y0088783		Pressure Regulator		Appelez-nous	-
8	Y0056133		Electrode, Top Burner Rt		Appelez-nous	-
9	Y0310185		Sub 57358, Burner, Rear		Appelez-nous	-
10	Y0310185		Sub 57358, Burner, Rear		Appelez-nous	-
11	Y0056115		Surface Valve Bolt& Gasket		Appelez-nous	-
12	Y00000000		See Note Brkt-mnfd Pipe,sq		Appelez-nous	-
13	Y0057338		Valve, Top Burner		Appelez-nous	-
14	07622004A		Panel,manifold(gas 36)		Appelez-nous	-
15	Y0311080		Knob, Top Burner		Appelez-nous	-
16	Y0310525		Knob, T-stat (gasr		Appelez-nous	-
17	WP878009		Switch, Spark, O.h.c.   (Replaces: Y0089068)				$ 120.61
18	WP4157180		Switch, Spark Valve   (Replaces: Y07455200)				$ 119.66
20	07594503F		Pipe, Manifold (gas 36)		Appelez-nous	-
21	Y0057254		Igniter-spk, Top Burner		Appelez-nous	-
22	0088650		Square Nut {j}		Appelez-nous	-
23	Y0312158		Ignitor, Ground Strap		Appelez-nous	-
NI	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y01063001)			Immediately	$ 8.36
NI	0310234		Screw No.10 X 5/16		Appelez-nous	-
NI	Y07701500		Tie, Wire		Appelez-nous	-
NI	Y0310516		Switch, Oven Light		Appelez-nous	-
