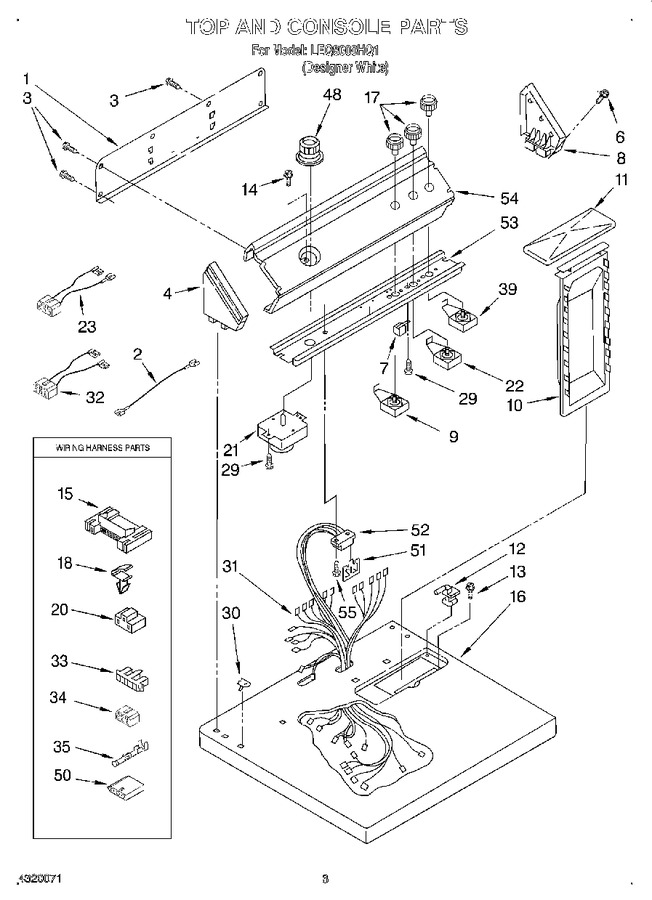

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	3401684		Wire, Jumper (black)				$ 34.57
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	3358528		Cap, End (l.h.)		Appelez-nous	-
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	3358513		Cap, End (r.h.)		Appelez-nous	-
9	W10168169		Switch, Temperature   (Replaces: 3399642)				$ 89.11
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	688150		Cover, Lint Screen		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	3396022		Top		Appelez-nous	-
17	WP3957796		Knob, Control   (Replaces: 3950759)			Immediately	$ 57.57
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
20	3401144		Connector, (pts Relay)				$ 12.81
21	3976573		Timer, 60 Hz.		Appelez-nous	-
22	WP3405156		Switch, Finish Guard   (Replaces: 3405156)				$ 152.79
23	3397695		Wire, Jumper (guard On/off)				$ 90.72
29	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	3394308		Harness, Wiring		Appelez-nous	-
32	8539893		Wire, Jumper (temperature)   (Replaces: 3396029)				$ 19.78
33	3397269		Connector, Timer				$ 25.55
34	3347243		Connector 6-circuit		Appelez-nous	-
35	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
39	WP3398095		Relay, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
48	WP3957752		Timer Knob Assembly   (Replaces: 3406143)				$ 56.66
50	3936144		Connector				$ 21.22
51	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
52	3391885		Connector, Edge				$ 90.72
53	8054298		Bracket, Control		Appelez-nous	-
54	3976772		Panel, Control		Appelez-nous	-
55	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
55	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
55	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
55	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
55	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
55	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
55	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
55	978883		Almond (uncut)		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
