SELECT A DIAGRAM

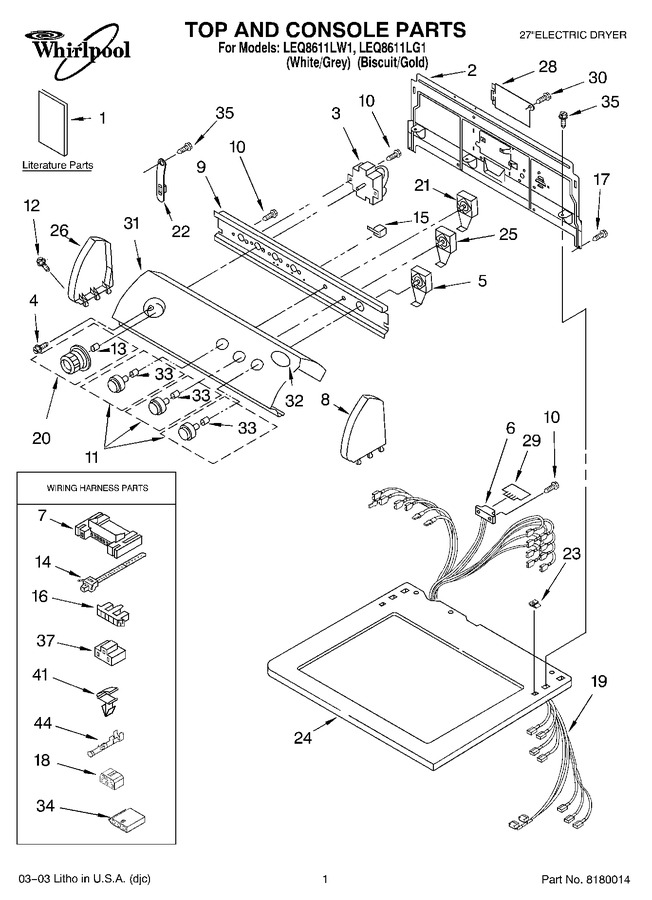

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8522243		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT677818		Literature Parts (manual, Do-it- Yourself Repair (dryer))		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT8535833		Literature Parts (instructions Installation)		Appelez-nous	-
1	LIT8541832		Literature Parts (wiring Diagram)		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 248.97
3	WP3406725		Timer, 60 Hz.   (Replaces: 3406725)				$ 368.58
4	3400859		Screw, Grounding (8-18 X 7/32)				$ 13.22
5	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
6	3391885		Connector, Edge				$ 86.40
7	3395683		Connector (motor)			Immediately	$ 51.86
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
9	8271316		Bracket, Control		Appelez-nous	-
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
11	8538958		Knob, Control (3) (leq8611lg1)		Appelez-nous	-
11	WP8538957		Knob, Control (3) (leq8611lw1)   (Replaces: 8538957)				$ 55.74
12	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
13	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
14	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
15	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
16	3397269		Connector, Timer				$ 25.55
17	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
18	3347243		Connector 6-circuit		Appelez-nous	-
19	8299958		Harness, Electric		Appelez-nous	-
20	8538954		Timer Knob Assembly (leq8611lg1)		Appelez-nous	-
20	WP8557455		Timer Knob Assembly (leq8611lw1)   (Replaces: 8538953)				$ 56.77
21	8530152		Switch, Temperature				$ 14.81
22	WP8568314		Strap, Console   (Replaces: 8318255)				$ 7.78
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
24	8271401		Top (biscuit)		Appelez-nous	-
24	8271399		Top (white)		Appelez-nous	-
25	WP3405156		Switch, Wrinkle Shield   (Replaces: 3405156)				$ 145.51
26	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
26	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
28	WPW10119283		Cover, Terminal Block   (Replaces: 8317342)				$ 128.35
29	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
30	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
31	8532623		Panel, Control (includes Illus. 32) (grey)		Appelez-nous	-
31	8532624		Panel, Control (includes Illus. 32) (gold)		Appelez-nous	-
32	3955775		Medallion		Appelez-nous	-
33	WP8536939		Spring Clip   (Replaces: 8536939)			Immediately	$ 7.81
34	3936144		Connector				$ 20.21
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
37	3401144		Connector, (pts Relay)				$ 12.20
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67

    View Diagram in Separate Window       Print Part List
