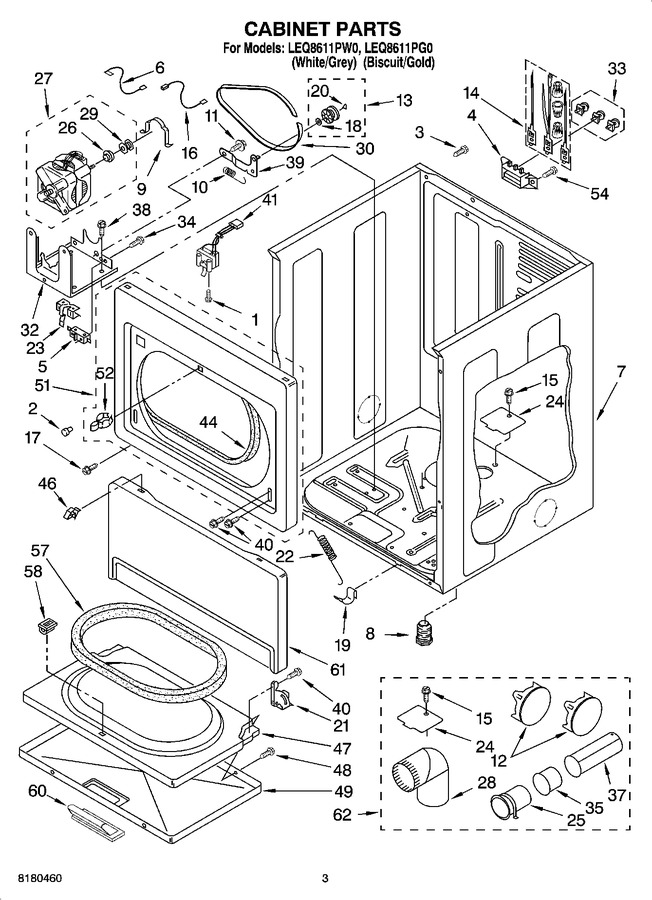

02 - Cabinet Parts
03 - Bulkhead Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.70 | |||||
| 2 | 693152 | Bumper |
|
$ 10.96 | |||||
| 3 | W10850756 | Screw, 10-32 X 5/8 (Replaces: 697776) |
|
$ 7.76 | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 23.02 | |||||
| 5 | 279782 | Switch, Broken Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 6 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 61.58 | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: 8310656) |
|
$ 419.21 | |||||
| 7 | 8310659 | Cabinet (biscuit) |
|
- | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.02 | |||||
| 12 | W10470674 | Plug, Multivent (white) (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 12 | WPW10404617 | Plug, Multivent (biscuit) (Replaces: 3388311) |
|
$ 71.98 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (3) (includes Illus. 33) |
|
Immediately | $ 100.99 | ||||
| 15 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 16 | 3394081 | Wire, Belt Switch |
|
$ 37.57 | |||||
| 17 | W10891954 | Screw, 8-18 X 3/8 (Replaces: 8281212) |
|
- | |||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 7.96 | ||||
| 19 | WP297092 | Clip (2) (Replaces: 297092) |
|
Immediately | $ 8.24 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WP3387560 | Hinge, Door (r.h.) (Replaces: 3387560) |
|
$ 96.54 | |||||
| 21 | WP3387559 | Hinge, Door (l.h.) (Replaces: 3387559) |
|
$ 96.54 | |||||
| 22 | WP3387565 | Spring, Door (2) (Replaces: 3387565) |
|
$ 39.35 | |||||
| 23 | WP8066120 | Lever, Snap Switch (Replaces: 8066120) |
|
Immediately | $ 33.11 | ||||
| 24 | WPW10354249 | Cover-plate (Replaces: 3394331) |
|
$ 8.96 | |||||
| 25 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 3395532) |
|
$ 91.38 | |||||
| 26 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 27 | 279787 | Motor Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 235.65 | ||||
| 28 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 26.82 | |||||
| 29 | W10837625 | Pulley 60 Hz (Replaces: 3389729) |
|
Immediately | $ 12.16 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 133.59 | |||||
| 33 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 47.37 | ||||
| 34 | WP98129 | Screw, 6-20 X 1-3/8 (Replaces: 98129) |
|
$ 7.56 | |||||
| 35 | WPW10331278 | Exhaust Pipe (short) (Replaces: 3395534) |
|
$ 78.95 | |||||
| 37 | WP8563749 | Exhaust Pipe (long) (Replaces: 3395535) |
|
$ 88.80 | |||||
| 38 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 3390663) |
|
Immediately | $ 7.85 | ||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 41 | WP3406107 | Door, Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 31.20 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 47 | 697655 | Door, Rear |
|
- | |||||
| 48 | WP694091 | Screw, 8-18 X 3/8 (Replaces: 694091) |
|
$ 7.19 | |||||
| 49 | 3977763 | Door, Front (biscuit) |
|
- | |||||
| 49 | 697221 | Door, Front (white) |
|
- | |||||
| 51 | 697227 | Upper Front Panel (white) |
|
- | |||||
| 51 | 3977761 | Upper Front Panel (biscuit) |
|
- | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 54 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 57 | W10823582 | Seal, Door (Replaces: 3390736) |
|
$ 111.92 | |||||
| 58 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 60 | 3977242 | Handle, Door (biscuit) |
|
- | |||||
| 60 | WP348721 | Handle, Door (white) (Replaces: 690270) |
|
$ 77.89 | |||||
| 61 | WP3406797 | Toe Panel (includes, Illus. 2 ) (white) (Replaces: 697215) |
|
$ 238.33 | |||||
| 61 | 3977764 | Toe, Panel (includes Illus.2) (biscuit) |
|
- | |||||
| 62 | 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | |||||
| 62 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | |||||
| 62 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 62 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 11.75 | |||||
| 62 | 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 26.45 | ||||
| 62 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 62 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 62 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 62 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| 62 | W10470674 | Biscuit (Replaces: 279925) |
|
Immediately | $ 76.65 | ||||
| 62 | N/A | Accessory Parts |
|
- | |||||
| 62 | 4392067 | Kit, Dryer Repair |
|
Immediately | $ 62.25 | ||||
| 62 | 8212450A | Dry Rack (Replaces: 3406911) |
|
Immediately | $ 83.99 |
