SELECT A DIAGRAM

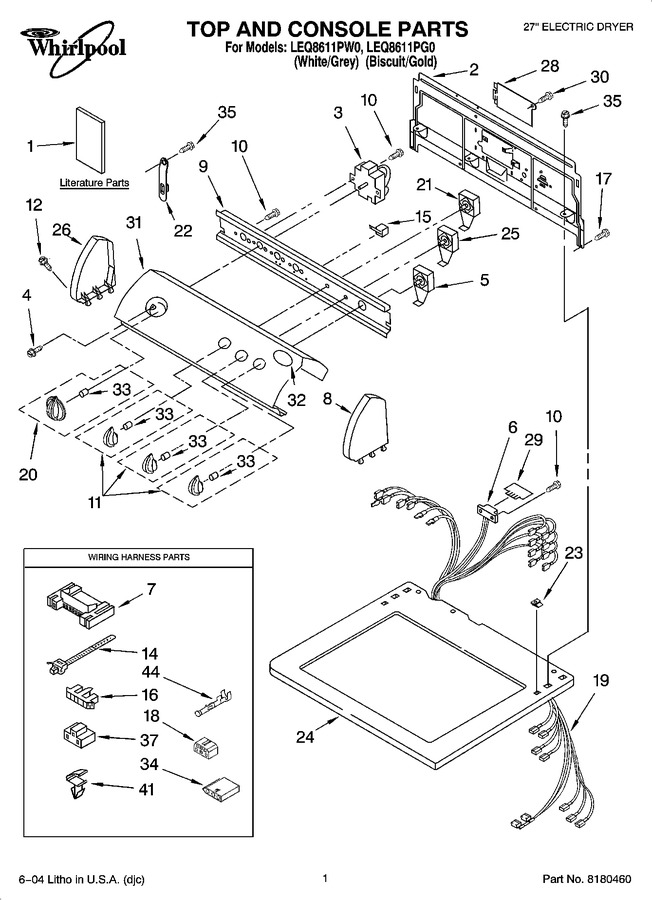

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	8533772		Guide, Use & Care		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8533770		Sheet, Cycle Feature		Appelez-nous	-
1	8535833		Instructions Installation		Appelez-nous	-
1	8541832		Wiring Diagram		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 261.42
3	WP3406725		Timer, 60 Hz.   (Replaces: 3406725)				$ 387.01
4	3400859		Screw, Grounding (8-18 X 7/32)				$ 13.88
5	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
6	3391885		Connector, Edge				$ 90.72
7	3395683		Connector (motor)			Immediately	$ 54.45
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
9	8544897		Bracket, Control		Appelez-nous	-
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
11	8544938		Knob, Control (3) (biscuit)				$ 22.73
11	8544937		Knob, Control (3) (grey)				$ 24.98
12	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
14	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
15	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
16	3397269		Connector, Timer				$ 25.55
17	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
18	3347243		Connector 6-circuit		Appelez-nous	-
19	8299958		Harness, Electric		Appelez-nous	-
20	8544958		Timer Knob Assembly (biscuit)		Appelez-nous	-
20	8544957		Timer Knob Assembly (grey)				$ 41.86
21	8530152		Switch, Temperature				$ 14.81
22	WP8568314		Strap, Console   (Replaces: 8318255)				$ 8.17
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
24	8271401		Top (biscuit)		Appelez-nous	-
24	8271399		Top (white)		Appelez-nous	-
25	WP3405156		Switch, Wrinkle Shield   (Replaces: 3405156)				$ 152.79
26	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
26	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
28	WPW10119283		Cover, Terminal Block   (Replaces: 8317342)				$ 134.77
29	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
30	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
31	8545996		Panel, Control (includes Illus. 32) (grey)		Appelez-nous	-
31	8545997		Panel, Control (includes Illus. 32) (gold)		Appelez-nous	-
32	3400985		Medallion		Appelez-nous	-
33	WP8536939		Spring Clip   (Replaces: 8536939)			Immediately	$ 8.20
34	3936144		Connector				$ 21.22
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
37	3401144		Connector, (pts Relay)				$ 12.81
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05

    View Diagram in Separate Window       Print Part List
