SELECT A DIAGRAM

01 - Backguard Assy


02 - Broiler Drawer Assy


03 - Cabinet Assy


04 - Main Top Assy


05 - Oven Components


06 - Oven Door Assy-solid Door

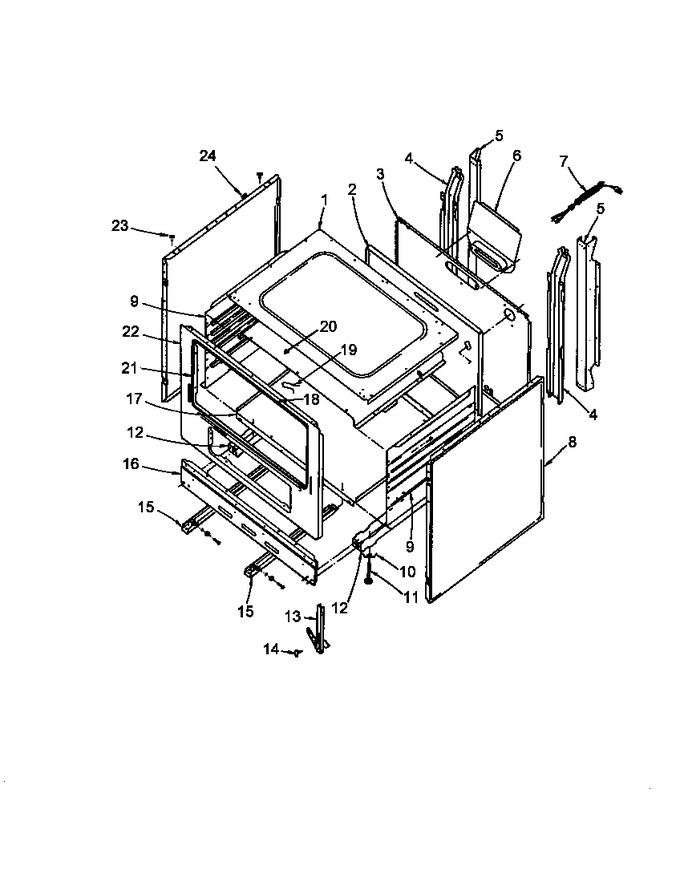

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3110200E		Burner Box		Appelez-nous	-
2	Y03382001E		Backliner, Oven (enamel)		Appelez-nous	-
3	Y01392002		Pnl, Main Back Gas 30``		Appelez-nous	-
4	0052742		Vertical Sup. (j)		Appelez-nous	-
5	0056477		Support, Rear, Vertical {j}		Appelez-nous	-
6	0088718		Flue Box		Appelez-nous	-
8	313762W		Panel, Texture Body		Appelez-nous	-
9	0311807		Liner,oven Side		Appelez-nous	-
10	Y0088571		Snap-in Tee Nut		Appelez-nous	-
11	Y01084001		Leveler, Leg Screw		Appelez-nous	-
12	06554900		Rail, Base		Appelez-nous	-
13	Y07489700		Hinge, Oven Door		Appelez-nous	-
14	WP4159193		Screw,philip Pan Hd 10-24x5/16   (Replaces: Y0310611)				$ 5.07
14	Y01001303		Screw-no.10x9/16 Decr,bl		Appelez-nous	-
15	Y0313761		Track, Lower R.h.		Appelez-nous	-
15	Y0313760		Track, Lower L.h.		Appelez-nous	-
16	Y06451602		Panel, Toe 30`` (black)		Appelez-nous	-
17	Y06467101		Baffle, Base (30``gas)		Appelez-nous	-
18	Y07623602		Seal, Oven, Top &bottom				$ 40.32
19	01052001		Clip, Capillary		Appelez-nous	-
20	Y06470802E		Topliner, Oven 30``gas		Appelez-nous	-
21	Y0056090		Seal, Oven-sides		Appelez-nous	-
22	88751CG		Main Front 30``		Appelez-nous	-
23	Y0310036		Screw, Stud		Appelez-nous	-
24	Y0087002		Sub 63661, Bumper, Ov. Dr.		Appelez-nous	-
NI	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y01063001)			Immediately	$ 8.36
NI	Y01000300		Screw, 10 X 1-1/2		Appelez-nous	-
NI	Y0056088		Screw {j}		Appelez-nous	-
NI	0310033		Clip, Speed (doz) {j}		Appelez-nous	-
NI	Y0310039		Insulation,wrapper		Appelez-nous	-
NI	07687600		Kit, Anti-tip		Appelez-nous	-
NI	0310038		Insulation Back (j)		Appelez-nous	-
NI	06554900		Rail, Base		Appelez-nous	-
NI	0310053		Shield, Insulation {j}		Appelez-nous	-
NI	Y01001301		Screw, 10 X 5/8 Decr Hd		Appelez-nous	-
NI	0310064		Shield, Insulation (j)		Appelez-nous	-
NI	0310816		Radiation Shield, Broiler		Appelez-nous	-
NI	0310054		Support, Side Liner {j}		Appelez-nous	-
NI	Y01001303		Screw-no.10x9/16 Decr,bl		Appelez-nous	-
