01 - Cabinet Parts

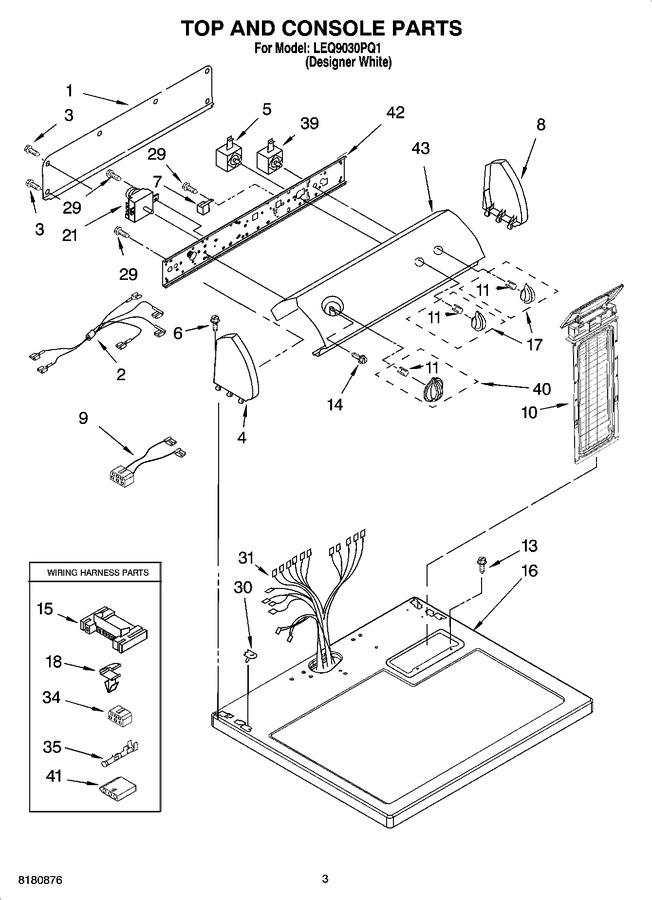

02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	8539888		Wire, Jumper (pts To Buzzer)		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	WP3399640		Switch, Temperature   (Replaces: 3399640)				$ 136.25
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	3976562		Wire, Jumper Temperature		Appelez-nous	-
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8557930		Top		Appelez-nous	-
17	8544935		Knob, Control (2)		Appelez-nous	-
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
21	WP8299774		Timer, 60 Hz.   (Replaces: 8299774)				$ 377.29
29	WP90767		Screw, Mounting (8-18 X 5/16)   (Replaces: 8533971)			Immediately	$ 8.25
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8299869		Harness, Wiring		Appelez-nous	-
34	3347243		Connector 6-circuit		Appelez-nous	-
35	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
39	WP8543274		Switch, Push-to-start   (Replaces: 8543274)				$ 80.90
40	8544955		Timer Knob Assembly				$ 41.86
41	3936144		Connector				$ 21.22
42	8271418		Bracket, Control				$ 57.15
43	8545969		Panel, Control		Appelez-nous	-
