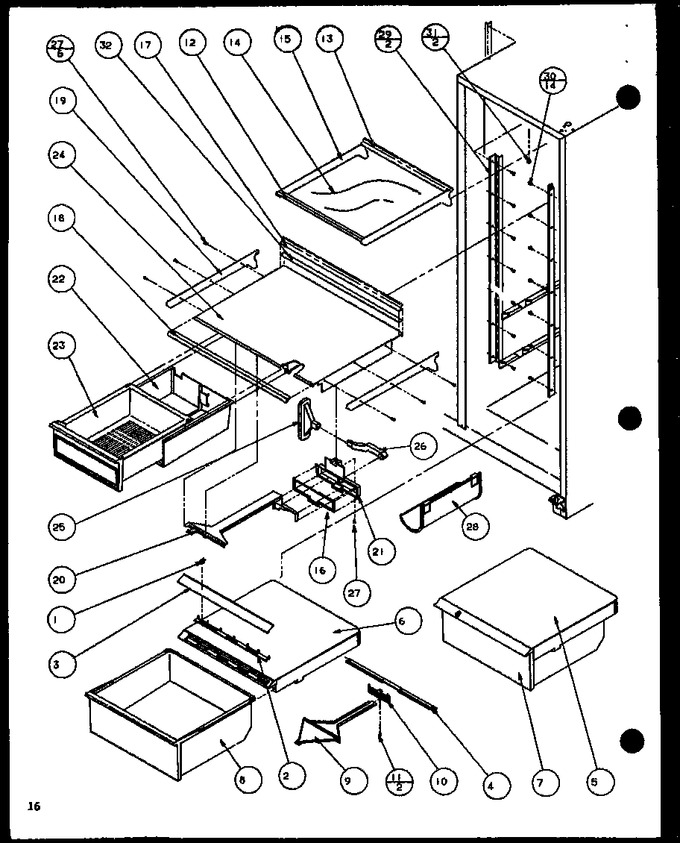

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 2 | D7587705 | Slide Humidity |
|
- | |||||
| 3 | D7616623 | Trim Humidity Control |
|
- | |||||
| 4 | D7764103 | Damper, Humidity Center |
|
- | |||||
| 5 | D7796401 | Crisper Top |
|
- | |||||
| 6 | D7796402 | Crisper Top |
|
- | |||||
| 7 | D7797803 | Net Pan, Fruit |
|
- | |||||
| 8 | D7797804 | Pan, Crisper |
|
- | |||||
| 9 | D7782201 | Slide Crisper Cont. |
|
- | |||||
| 10 | D7807601 | Support |
|
- | |||||
| 11 | M0230017 | Screw,tc |
|
- | |||||
| 12 | C8913507 | Trim, Front Shelf |
|
- | |||||
| 13 | C8913603 | Trim, Shelf Rear |
|
- | |||||
| 14 | D7421247 | Glass Shelf |
|
- | |||||
| 15 | D7788403 | Frame, Cont. Shelf |
|
- | |||||
| 16 | A3030305 | Gasket-per Ft |
|
- | |||||
| 17 | C8831810 | Trim, Rear Shelf |
|
- | |||||
| 18 | C8913508 | Trim |
|
- | |||||
| 19 | D7600036 | Blank Side Rail |
|
- | |||||
| 20 | D7697903 | M.k. Control Slide |
|
- | |||||
| 21 | D7698003 | Housing M.k. Slide |
|
- | |||||
| 22 | D7698107 | Sleeve M.k. |
|
- | |||||
| 23 | D7698318 | Meat Pan |
|
- | |||||
| 24 | D7698210 | Top, M.k |
|
- | |||||
| 25 | D7788001 | Grommet, Mk |
|
- | |||||
| 26 | D7788101 | Duct, M.k. Air |
|
- | |||||
| 27 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 28 | D7547603 | Rack, Bottle |
|
- | |||||
| 29 | D7789801 | Ladder, Cantilever |
|
- | |||||
| 30 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 6.57 | ||||
| 31 | M0586201 | Grommet, Screw |
|
- | |||||
| 32 | M0275163 | Tape Per Roll |
|
- | |||||
| NI | R0179108 | Crisper Top Assy |
|
- | |||||
| NI | D7714648 | Glass Shelf Assy |
|
- | |||||
| NI | R0179107 | Crisper Top Assy |
|
- |
