SELECT A DIAGRAM

01 - Cabinet Parts

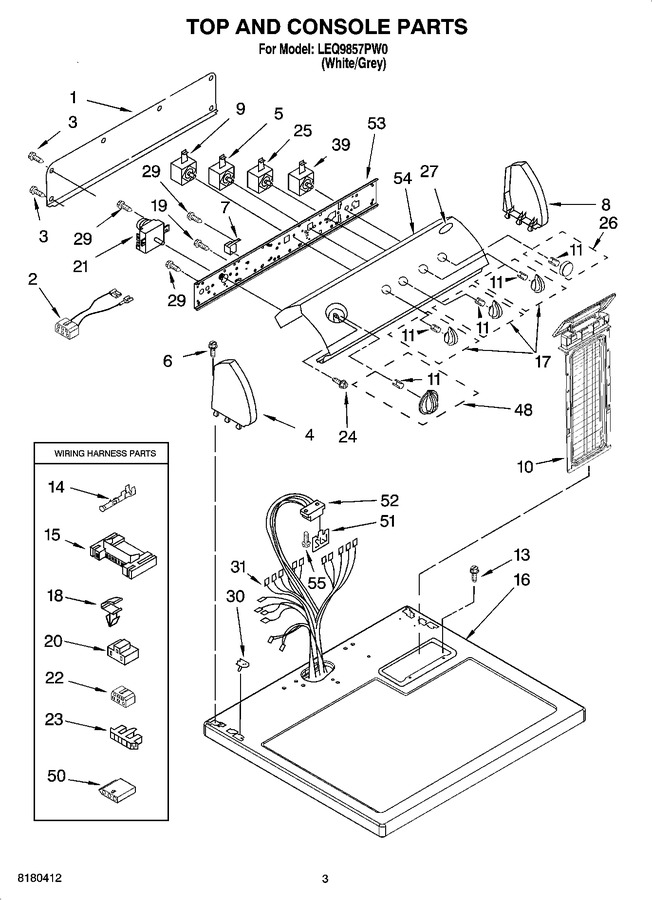

02 - Top And Console Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	3401695		Wire, Jumper (buzzer On/off)		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3405154		Switch, Wrinkle Shield				$ 160.52
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	8528330		Switch, Temperature				$ 234.90
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8557930		Top		Appelez-nous	-
17	8544937		Knob, Control (3)				$ 24.98
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
20	3401144		Connector, (pts Relay)				$ 12.81
21	WP3406725		Timer, 60 Hz.   (Replaces: 3406725)				$ 387.01
22	3347243		Connector 6-circuit		Appelez-nous	-
23	3397269		Connector, Timer				$ 25.55
24	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
25	3405152		Switch, End Of Cycle				$ 131.07
26	WP8544941		Knob, Push-to-start   (Replaces: 8544941)				$ 101.62
27	3400985		Medallion		Appelez-nous	-
29	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8299889		Harness, Wiring		Appelez-nous	-
39	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 129.39
48	8544957		Timer Knob Assembly				$ 41.86
50	3936144		Connector				$ 21.22
51	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
52	3391885		Connector, Edge				$ 90.72
53	8544895		Bracket, Control		Appelez-nous	-
54	8545992		Panel, Control (includes Illus. 27)		Appelez-nous	-
55	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
55	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
55	W11224254		Kit, Dryer Vent Testng   (Replaces: 8522199)				$ 12.34
55	3406839		Dry Rack			Immediately	$ 65.68
55	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
55	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
55	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
55	N/A		Accessory Parts		Appelez-nous	-
55	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 66.68
