SELECT A DIAGRAM

01 - Top And Cabinet Parts

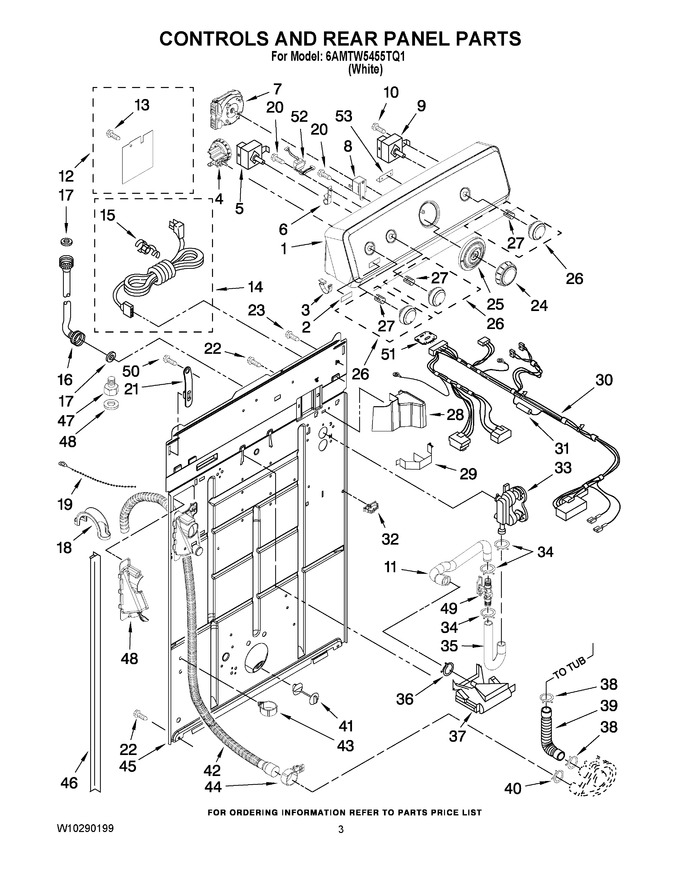

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10115444		Console & Shell Assembly (includes Items 2 & 3)		Appelez-nous	-
2	W10203949		Badge Assembly				$ 68.61
3	WP8312709		Clip-console (2)   (Replaces: 8312709)			Immediately	$ 16.35
4	W10339334		Switch, Water Level   (Replaces: 8577845)			Immediately	$ 198.14
5	W10168171		Switch, Water Temperature		Appelez-nous	-
6	8317975		Retainer, Harness				$ 5.86
7	W10155498		Timer (motor Not A Service Part)		Appelez-nous	-
8	3952439		Buzzer, Mini		Appelez-nous	-
9	WPW10168257		Switch, Rotary   (Replaces: W10168257)				$ 133.33
10	3400073		Screw, Ground		Appelez-nous	-
11	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 21.34
12	W10093726		Shield, Assembly Lower		Appelez-nous	-
13	W10000080		Rivet		Appelez-nous	-
14	W10121455		Cord, Power		Appelez-nous	-
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	WPW10615809		Hose, Water Inlet (2) (blue Hose)   (Replaces: 3949383)				$ 99.72
16	WPW10615831		Hose, Water Inlet (2) (red Hose)   (Replaces: 3949382)				$ 98.71
17	WP16123		Washer, Water Inlet Hose (4)   (Replaces: W10242307)				$ 7.70
18	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
19	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
20	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
21	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
22	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
23	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
24	WPW10110033		Knob, Timer   (Replaces: W10110033)				$ 63.88
25	W10112571		Dial, Timer				$ 48.51
26	WPW10110035		Knob, Control   (Replaces: W10110035)				$ 58.08
27	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
28	8314879		Shield, Inlet Valve		Appelez-nous	-
29	8055003		Clip, Harness & Pressure Hose				$ 36.24
30	W10179465		Harness, Wiring (for Details See Pages 9 & 10)		Appelez-nous	-
31	WPW10111181		Fuse (in Harness)   (Replaces: W10111181)				$ 33.15
32	3352944		Clip, Harness		Appelez-nous	-
33	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 288.04
34	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.40
35	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 27.21
36	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
37	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
38	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
39	285871		Hose, Pump To Tub (includes Item 38)   (Replaces: 3951449)			Immediately	$ 26.68
40	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
41	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
42	WPW10096921		Drain Hose Assembly (includes Items 43 & 44)   (Replaces: W10096921)			Immediately	$ 67.38
43	8541667		Clamp, Hose				$ 5.86
44	8541668		Clamp, Hose				$ 21.26
45	8318015		Panel, Rear				$ 148.59
46	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
47	WP3357397		Adapter, Water Inlet Hose (2)   (Replaces: 3357397)				$ 89.25
48	WP3357450		Washer, Inlet Hose Adapter (2)   (Replaces: 3357450)				$ 11.01
49	3352282		Sensor, Inline				$ 66.68
50	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
51	WPW10110247		Control, Atc-iec   (Replaces: W10110247)				$ 129.44
52	3407160		Transformer		Appelez-nous	-
53	8316039		Shield, Atc		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
