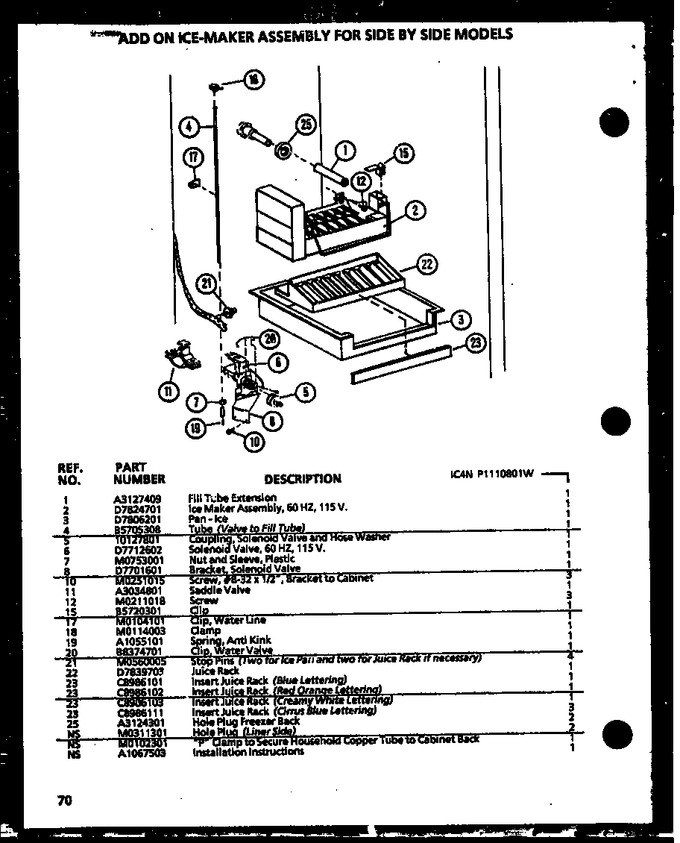

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3127409		Ext, Fill Tube		Appelez-nous	-
2	D7824706Q		Ice Maker   (Replaces: D7824701)			Immediately	$ 167.35
3	D7806201		Pan, Ice		Appelez-nous	-
4	WPB5705307		Tubing Plastic   (Replaces: B5705308)				$ 13.05
5	10127801		Coupling		Appelez-nous	-
6	4318047		Valve-water K   (Replaces: D7712602)			Immediately	$ 74.09
7	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
8	D7701601		Brkt, Water Valve		Appelez-nous	-
10	681390		Screw   (Replaces: M0251015)				$ 13.71
11	A3034801		Saddle Valve		Appelez-nous	-
12	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
15	B5720301		Clip		Appelez-nous	-
17	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
18	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
19	A1055101		Spring, Antikink		Appelez-nous	-
20	B8374701		Clip, Water Valve		Appelez-nous	-
21	M0560005		Support		Appelez-nous	-
22	D7839703		Rack, Juice V		Appelez-nous	-
23	C8986103		Insert, Juice Rack		Appelez-nous	-
23	C8986101		Insert Juice Rack		Appelez-nous	-
23	C8986102		Insert, Juice Rack		Appelez-nous	-
23	C8986111		Insert Juice Rack		Appelez-nous	-
25	A3124301		Plug		Appelez-nous	-
NI	A1067503		Installation Instructions		Appelez-nous	-
NI	M0102301		Clamp		Appelez-nous	-
NI	M0311301		Plug Button		Appelez-nous	-
